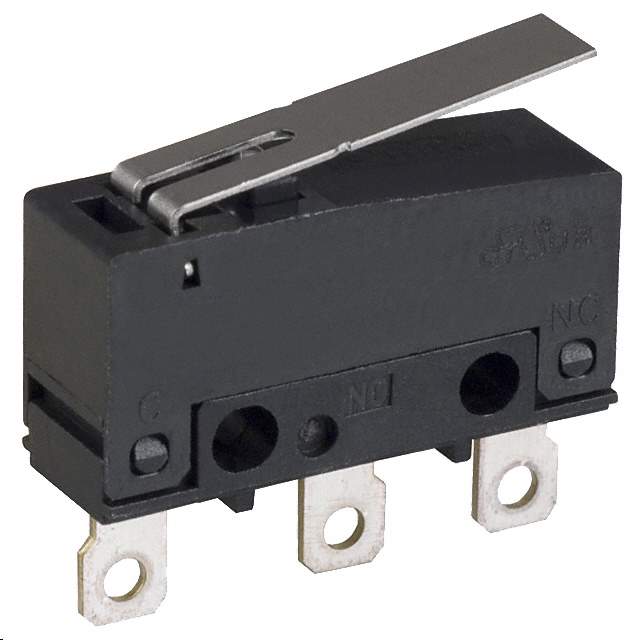

SS-01GLP Real Image
Same model may have multiple batches, images only for reference.

SS-01GLP

Part No SS-01GLP
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
SS-01GLP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GLPBYOMZ,SS-01GLP BY OMZ,SW776,SS01GLP
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233430-SS-01GLP
Ultra Librarian 3D Model Ultra Librarian SS-01GLP CAD Model

Description

The Omron 1233430-SS-01GLP is a limit switch that is designed for use in electronic applications.

  • Series: SS-P series
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, straight
  • Electrical Life: 200,000 cycles
  • Operating Force: 51gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Voltage: 125VAC and 30VDC
  • Ingress Protection Rating: IP40
