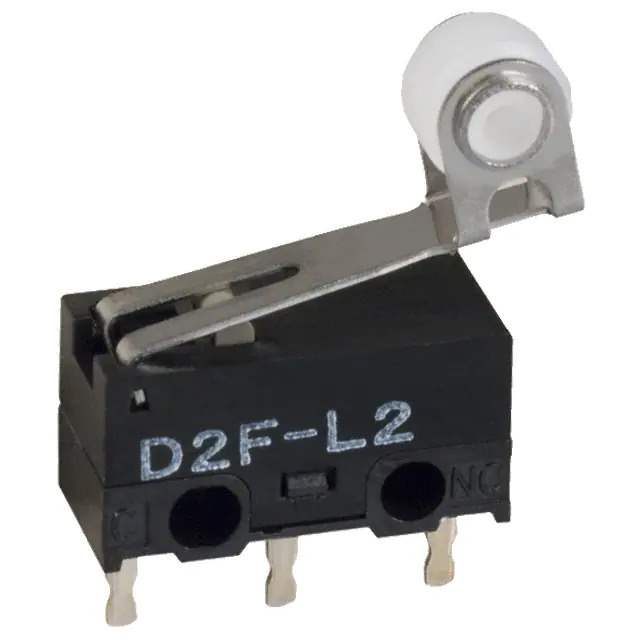

D2F-L2-A1 Real Image
Same model may have multiple batches, images only for reference.

D2F-L2-A1

Part No D2F-L2-A1
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2F
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Features Actuator Mounted Left Side
Operating Force 80gf
Release Force 5.099gf
Operating Position 0.512" (13.0mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
Standard Package 450 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 868008-D2F-L2-A1
Ultra Librarian 3D Model Ultra Librarian D2F-L2-A1 CAD Model

Description

The Omron D2F-L2-A1 is a limit switch from the D2F series.

  • Termination: PC pin
  • Mounting: Through-hole, right angle
  • Actuator Location: Left side
  • Voltage Rating: 125V AC and 30V DC
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever with a roller
  • Electrical Life: 30,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 80gf
  • Release Force: 5.099gf
  • Ingress Protection: IP40
  • Temperature Range: -40°C to 85°C
  • Status: Active product
  • Package: Bulk package
  • Applications: Commonly used in switch applications that require high reliability and performance.
