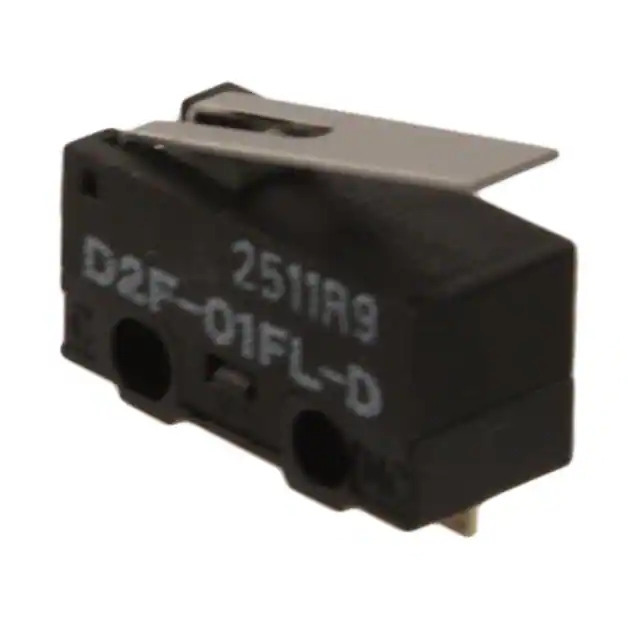

D2F-FL-D Omron
Same model may have multiple batches, images only for reference.

D2F-FL-D

Part No D2F-FL-D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2F
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Features -
Operating Force 25gf
Release Force 2.039gf
Operating Position 0.268" (6.8mm)
Pretravel -
Differential Travel 0.020" (0.5mm)
Overtravel 0.022" (0.55mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1356620-D2F-FL-D
Ultra Librarian 3D Model Ultra Librarian D2F-FL-D CAD Model

Description

The Omron Electronics Inc-EMC Div D2F-FL-D is a limit switch from Omron Electronics Inc-EMC Div.

  • Series: D2F
  • Current Rating: 1A (AC), 500mA (DC)
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC, 30V DC
  • Actuator Type: Lever, Straight
  • Termination Style: Solder Lug
  • Ingress Protection: IP40
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 30,000 cycles
  • Operating Force: 25gf
  • Release Force: 2.039gf
  • Operating Position: 0.268" (6.8mm)
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.022" (0.55mm)
  • Mounting Type: Chassis Mount
