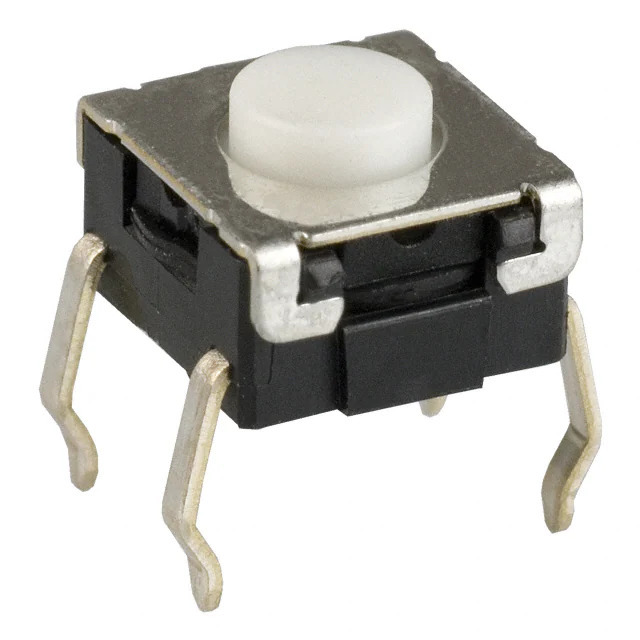

B3W-1000 Omron
Same model may have multiple batches, images only for reference.

B3W-1000

Part No B3W-1000
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet
B3W-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron Electronics Inc-EMC Div
Series B3W
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.60mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -25°C ~ 70°C
Actuator Material -
Switch Travel -
Mechanical Life 300,000 Cycles
Base Product Number B3W
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376535-B3W-1000
Ultra Librarian 3D Model Ultra Librarian B3W-1000 CAD Model

Description

The B3W-1000 is a tactile switch from Omron Electronics.

  • Series: B3W
  • Package: Bulk
  • Ingress Protection: IP67
  • Switch Function: SPST-NO (Off-Mom)
  • Mechanical Life: 300,000 cycles
  • Contact Rating: 0.05A @ 24VDC
  • Operating Force: 160gf
  • Actuator Height: 4.30mm vertical
  • Outline Size: 6.60mm x 6.00mm
