Same model may have multiple batches, images only for reference.

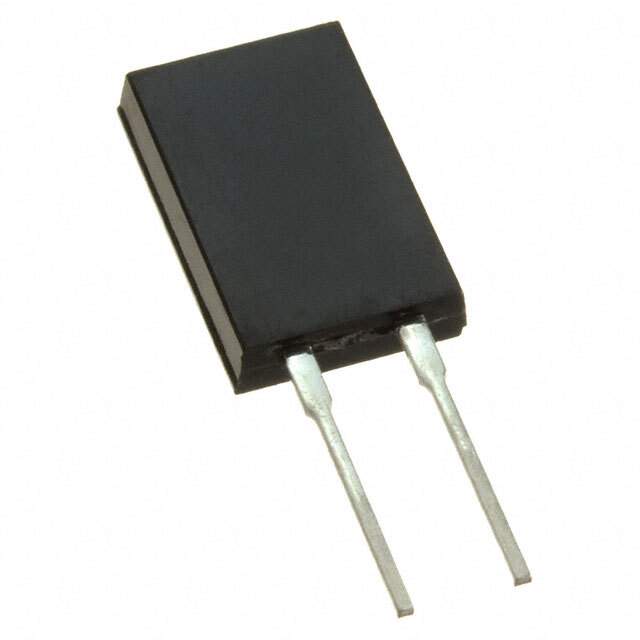

AP1017R5J Real Image
Same model may have multiple batches, images only for reference.

AP1017R5J

Part No AP1017R5J
Manufacturer Ohmite
Catalog Through Hole Resistors
Description Res 7.5 Ohm 5% 100/3.5W ±100ppm/C Molded TO-247 RDL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package TO-247
Composition Thick Film
Features Moisture Resistant
Height 20.955 mm
Length 15.748 mm
Maximum Operating Temperature 175 °C
Max Power Dissipation 100 W
Min Operating Temperature -65 °C
Number of Terminations 2
Power Rating 100 W
REACH SVHC Unknown
Resistance 7.5 Ω
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Tolerance 5 %
Voltage Rating 700 V
Voltage Rating (DC) 700 V
Width 4.953 mm
Win Source Part Number 1021277-AP1017R5J
Categories Through Hole Resistors
Manufacturer Ohmite
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian AP1017R5J CAD Model

Description

The Ohmite 1021277-AP1017R5J is a Moisture Resistant resistor with a voltage rating of 700V. Ohmite manufactures it.

  • Length: 15.748mm
  • Width: 4.953mm
  • Height: 20.955mm
  • Tolerance: 5%
  • Temperature Coefficient: 100 ppm/°C
  • Technology: Thick Film
  • Number of Terminations: 2
  • Resistance: 7.5Ω
  • Power Rating: 100W
  • Case: TO-247
  • Mounting Type: Through Hole
  • Supply & Demand Status: Shortage
  • Operating Temperature - Min: -65°C
  • Operating Temperature - Max: 175°C
  • RoHS: Yes
  • REACH SVHC: Unknown
