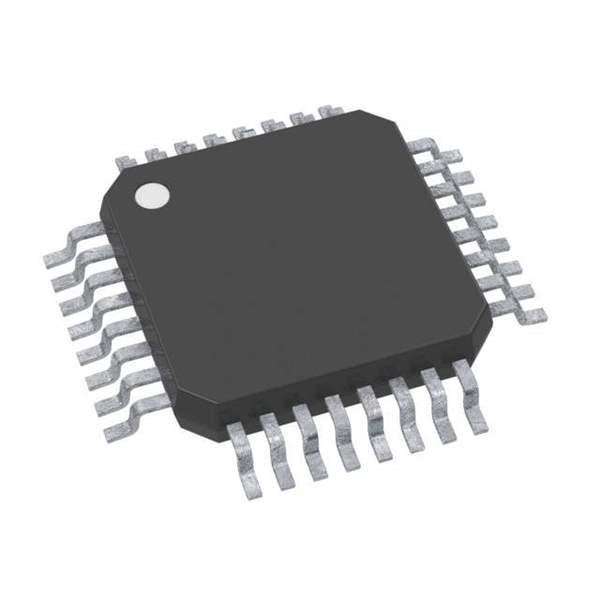

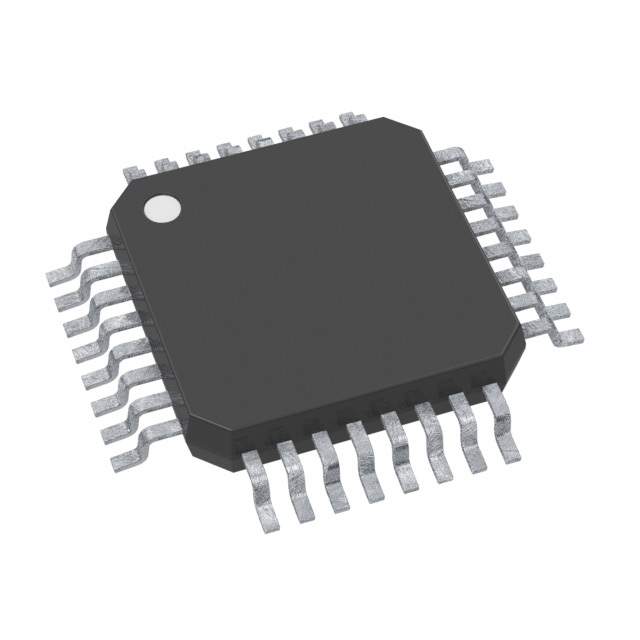

The MS51PC0AE is an 8-bit microcontroller based on the enhanced 1T 8051 core, manufactured by Nuvoton Technology Corporation of America. It offers a wide range of integrated peripherals and a flexible architecture, making it suitable for various embedded applications.

Applications

• Consumer Electronics
• Industrial Control
• Motor Control
• Home Appliances
• Security Systems

Features

• Enhanced 1T 8051 Core: Executes instructions faster than traditional 8051 microcontrollers.
• Up to 16 KB Flash Memory: Provides ample storage for program code.
• Up to 1 KB SRAM: Offers sufficient RAM for data storage and manipulation.
• Multiple Timer/Counters: Enables precise timing and control operations.
• UART, SPI, and I2C Interfaces: Facilitates communication with other devices.
• ADC and PWM Modules: Supports analog-to-digital conversion and pulse-width modulation.
• Low Voltage Reset (LVR): Ensures reliable operation during power fluctuations.
• Watchdog Timer (WDT): Prevents program crashes and ensures system stability.

Benefits

• High Performance: The enhanced 8051 core delivers fast and efficient execution of code.
• Versatile Functionality: A wide range of integrated peripherals simplifies system design.
• Cost-Effective Solution: Offers a good balance of performance and cost.
• Easy to Use: Compatible with standard 8051 development tools and environments.
• Reliable Operation: LVR and WDT features ensure system stability and prevent crashes.

Additional Details

The MS51PC0AE operates from a wide voltage range, typically 2.4V to 5.5V, making it suitable for various power supply configurations. It is available in various package options, including QFN and LQFP, allowing for flexible integration into different types of products. The microcontroller supports in-system programming (ISP), enabling easy firmware updates and debugging.

The rich set of peripherals, combined with the high-performance 8051 core, makes the MS51PC0AE a versatile choice for a wide range of embedded applications. The integrated ADC and PWM modules are particularly useful for applications requiring analog signal processing and control, such as motor control and lighting control.
