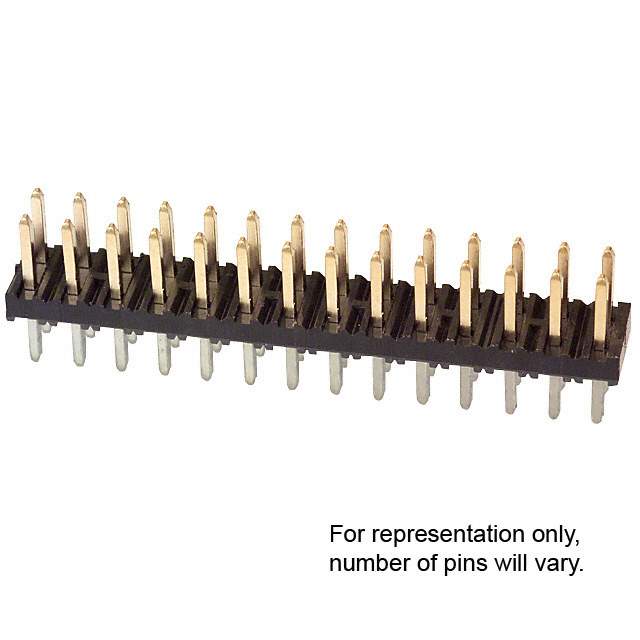

Same model may have multiple batches, images only for reference.

26647201RP2

Name: 26647201RP2
Brand: NorComp Inc.
SKU: 1336884
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	26647201RP2
Manufacturer	NorComp Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 72POS 2MM / Connector Header Through Hole 72 position 0.079" (2.00mm)
Datasheet	26647201RP2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	NorComp Inc.
Series	2664
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	72
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.150" (3.81mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.327" (8.30mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA6T) , Nylon 6T
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Contact Finish Thickness - Post	Flash
Base Product Number	2664720
Standard Package	25
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1336884-26647201RP2
Ultra Librarian 3D Model	Ultra Librarian 26647201RP2 CAD Model

Description

The 26647201RP2 is a male pin header connector from NorComp Inc. NorComp Inc.

Application: Board-to-Board or Cable-to-Board
Rows: 2
Positions: 72
Pitch: 0.079 inches (2.00 mm)
RoHS Compliant: Yes
Temperature Range: -40°C to 105°C
