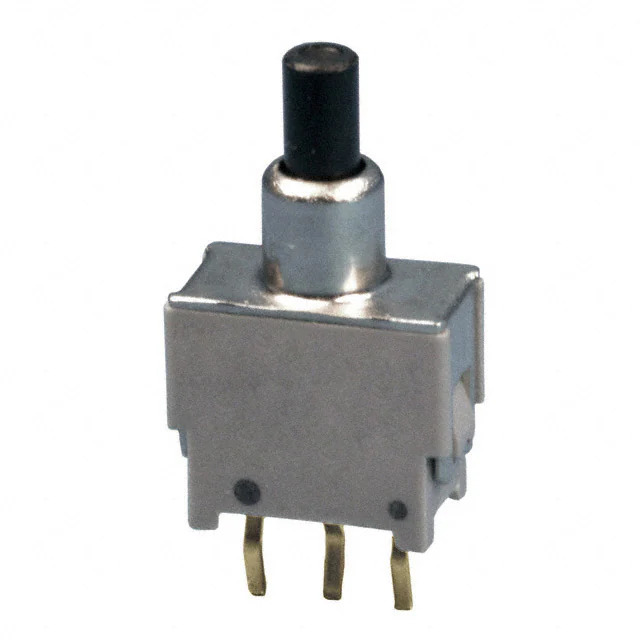

APE1F-2M-10-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

APE1F-2M-10-Z

Part No APE1F-2M-10-Z
Manufacturer Nidec Copal Electronics
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.05A 60V
Datasheet
APE1F-2M-10-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Nidec Components Corporation
Series APE
Package Bulk
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 50mA (AC/DC)
Voltage Rating - AC 60 V
Voltage Rating - DC 60 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Sealed - Fully
Panel Cutout Dimensions -
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number APE1F-2M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376071-APE1F-2M-10-Z
Ultra Librarian 3D Model Ultra Librarian APE1F-2M-10-Z CAD Model

Description

The APE1F-2M-10-Z is a standard sealed pushbutton switch from Nidec Components Corporation.

  • Current Rating (AC/DC): 50mA
  • Voltage Rating (AC/DC): 60V
  • Circuit: SPDT
  • Switch Function: On-Momentary
  • Actuator Type: Plunger for Black Cap
  • Mounting Type: Through Hole
  • Electrical Life: 10,000 cycles
  • Temperature Range: -20°C to 85°C
  • Series: APE
  • Package: Bulk
  • Product Status: Active
