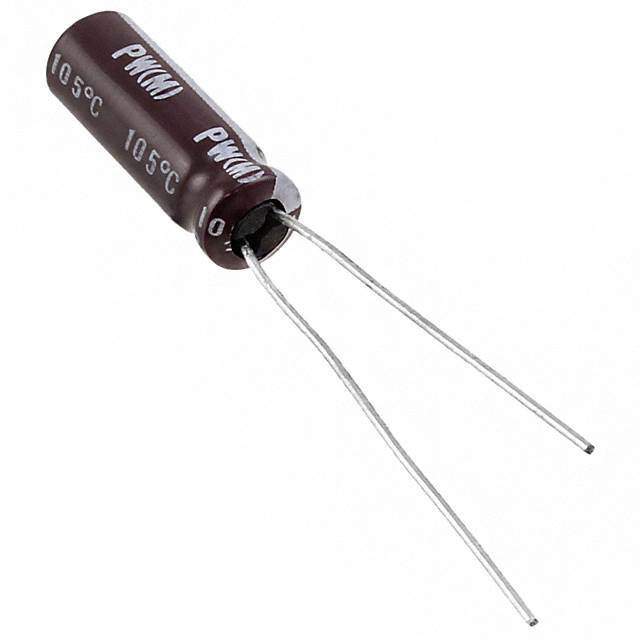

UPW1V390MDD1TD Real Image
Same model may have multiple batches, images only for reference.

UPW1V390MDD1TD

Part No UPW1V390MDD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 39UF 20% 35V RADIAL / 39 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UPW1V390MDD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Cut Tape (CT) Tape & Box (TB)
Product Status Obsolete
Capacitance 39 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 70.5 mA @ 120 Hz
Ripple Current @ High Frequency 235 mA @ 100 kHz
Impedance 500 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349982-UPW1V390MDD1TD
Ultra Librarian 3D Model Ultra Librarian UPW1V390MDD1TD CAD Model

Description

The Nichicon UPW1V390MDD1TD is a 39μF, 35V, through-hole mounting capacitor.

  • Capacitance: 39μF
  • Voltage Rating: 35V
  • Mounting Type: Through Hole
  • Tolerance: ±20%
  • Impedance: 500 mOhms
  • Series: UPW
  • Package/Case: Radial, Can
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current (Low Frequency): 70.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 235 mA @ 100 kHz
