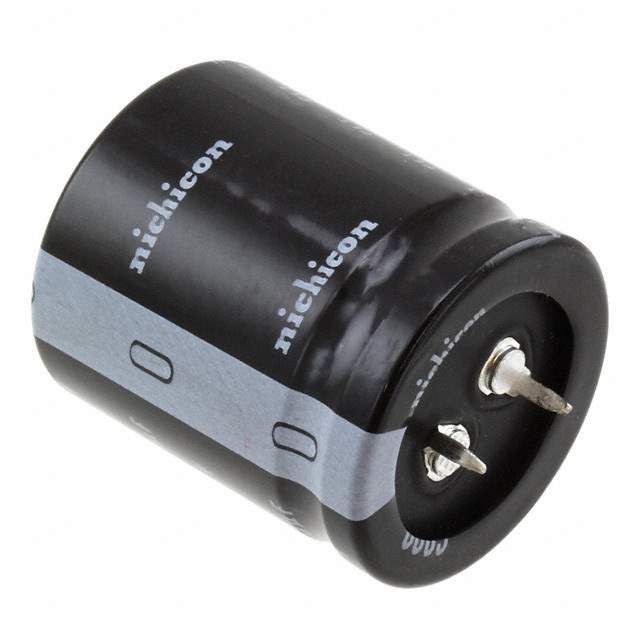

Same model may have multiple batches, images only for reference.

LLS2A272MELB

Name: LLS2A272MELB
Brand: Nichicon
SKU: 1336708
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLS2A272MELB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2700UF 20% 100V SNAP / 2700 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS2A272MELB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Capacitance	2700 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.65 A @ 120 Hz
Ripple Current @ High Frequency	4.1975 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1336708-LLS2A272MELB
Ultra Librarian 3D Model	Ultra Librarian LLS2A272MELB CAD Model

Description

The Nichicon LLS series is an aluminum electrolytic capacitor designed for general-purpose use in electronic devices.

Capacitance: 2700µF
Voltage - Rated: 100V
Tolerance: ±20%
Lead Spacing: 0.394" (10.00mm)
Mounting Type: Through Hole
Package / Case: Radial, Can - Snap-In
Size / Dimension: 1.181" (30.00mm) Diameter
Height - Seated (Max): 1.457" (37.00mm)
Ripple Current: 3.65A @ 120Hz, 4.1975A @ 50kHz
Lifetime @ Temp.: 3000 Hrs @ 85°C
Polarization: Polarized
Series: LLS
