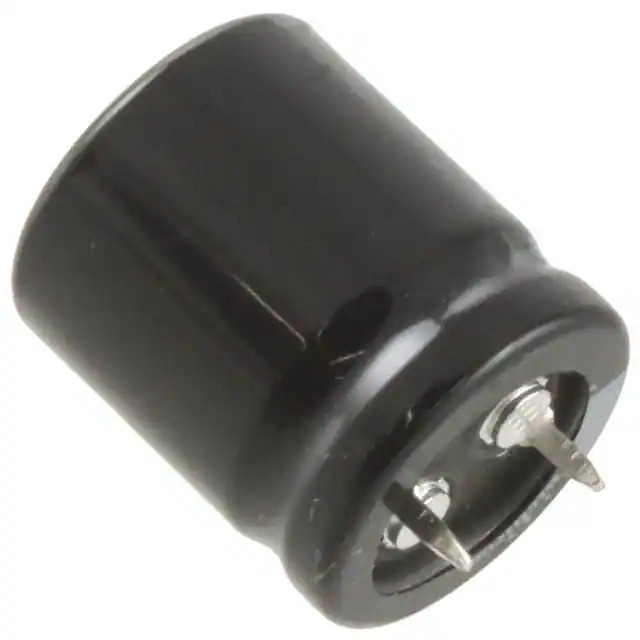

LGU2G101MELA

Name: LGU2G101MELA
Brand: Nichicon
SKU: 1360788
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGU2G101MELA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 400V SNAP / 100 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGU2G101MELA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	400 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	700 mA @ 120 Hz
Ripple Current @ High Frequency	1.001 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360788-LGU2G101MELA
Ultra Librarian 3D Model	Ultra Librarian LGU2G101MELA CAD Model

Description

The LGU2G101MELA is an aluminum electrolytic capacitor from Nichicon. LGU2G101MELA is from Nichicon.

Series: LGU
Package: Radial, Can - Snap-In
Capacitance: 100µF
Voltage Rating: 400V
Temperature Range: -25°C to 105°C
Tolerance: ±20%
Lifetime: 3000 hours @ 105°C
