Same model may have multiple batches, images only for reference.

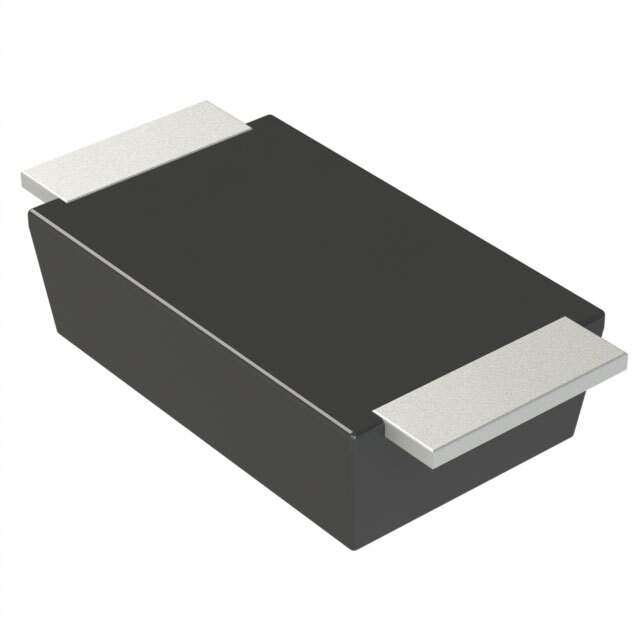

PMEG200G20ELRX Real Image
Same model may have multiple batches, images only for reference.

PMEG200G20ELRX

Part No PMEG200G20ELRX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description PMEG200G20ELR/SOD123W/SOD2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000459-PMEG200G20ELRX
Manufacturer Nexperia USA Inc.
Category Discrete Semiconductor Products -Diodes- Rectifiers Single Diodes
Package Tape & Reel (TR) Cut Tape (CT)
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type Surface Mount
Package / Case SOD-123W
Supplier Device Package SOD-123W
Base Product Number PMEG200
Product Status Active
Ultra Librarian 3D Model Ultra Librarian PMEG200G20ELRX CAD Model

Description

The PMEG200 is a fast recovery rectifier diode manufactured by Nexperia USA Inc.

  • Type: Single Diode
  • Speed: Less than 500ns
  • Current Rating: More than 200mA
  • Package Type: SOD-123W
  • Mounting: Surface Mount
  • Forward Voltage: 0.35V @ 2A
  • Status: Active
  • Packaging: Tape and Reel
