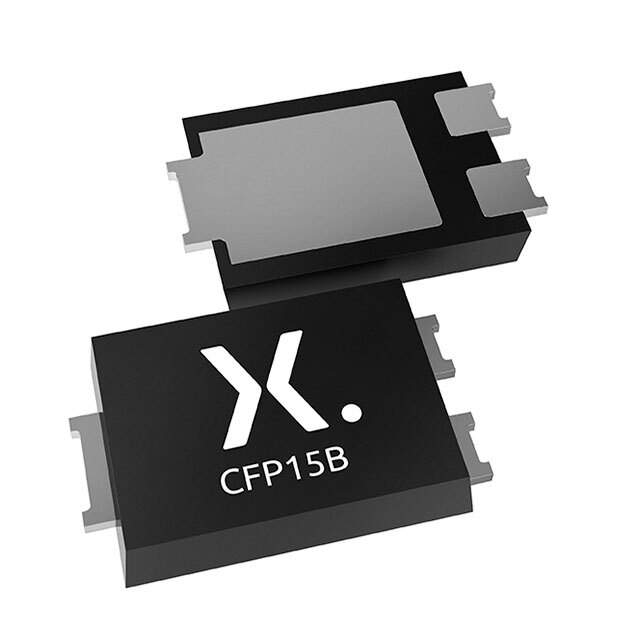

PMEG060V050EPDAZ Real Image
Same model may have multiple batches, images only for reference.

PMEG060V050EPDAZ

Part No PMEG060V050EPDAZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 5A CFP15 / Diode Schottky 60 V 5A Surface Mount CFP15
Datasheet
PMEG060V050EPDAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 560 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 12 ns
Current - Reverse Leakage @ Vr 400 µA @ 60 V
Capacitance @ Vr, F 175pF @ 10V, 1MHz
Mounting Surface Mount
Case / Package TO-277, 3-PowerDFN
Supplier Device Package CFP15
Operating Temperature - Junction 175°C (Max)
Base Product Number PMEG060
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1727-7638-6,1727-7638-2,934067905139,1727-7638-1,NEXNEXPMEG060V050EPDAZ,PMEG060V050EPDAZ-ND,2156-PMEG060V050EPDAZ-NEX
Standard Package 5,000
Win Source Part Number 1325576-PMEG060V050EPDAZ
Ultra Librarian 3D Model Ultra Librarian PMEG060V050EPDAZ CAD Model

Description

The Nexperia USA Inc. PMEG060V050EPDAZ from is a Schottky diode with a forward voltage of 560 mV @ 5 A and a reverse recovery time of 12 ns.

  • Forward Voltage: 560 mV @ 5 A
  • Reverse Recovery Time: 12 ns
  • Maximum Reverse Voltage: 60 V
  • Average Rectified Current: 5 A
  • Capacitance: 175 pF @ 10 V and 1 MHz
  • Reverse Leakage Current: 400 uA @ 60 V
  • Operating Temperature Range: Up to 175 degrees Celsius
