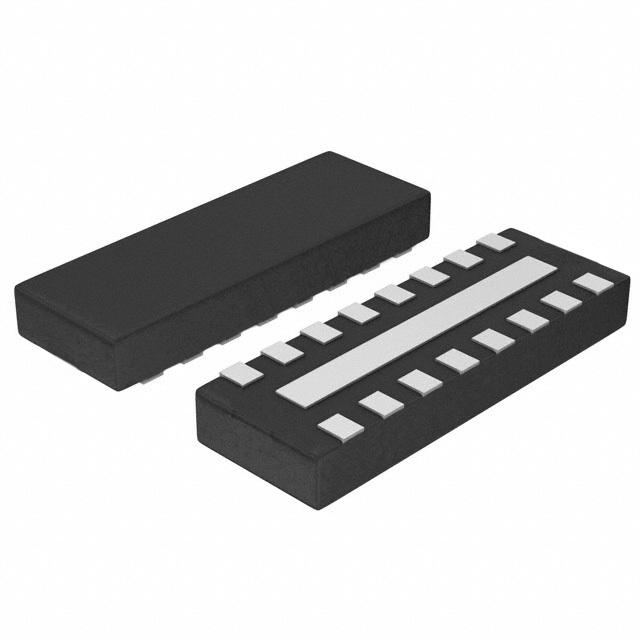

IP3253CZ16-8-TTL,1

Name: IP3253CZ16-8-TTL,1
Brand: Nexperia USA Inc.
SKU: 460780
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IP3253CZ16-8-TTL,1
Manufacturer	Nexperia USA Inc.
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER LC(PI) 18NH/25PF ESD SMD
Datasheet	IP3253CZ16-8-TTL,1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	Low Pass
Filter Order	3rd
Technology	LC (Pi)
Number of Channels	8
Center / Cutoff Frequency	175MHz (Cutoff)
Attenuation Value	30dB @ 1GHz to 4GHz
Resistance - Channel (Ohms)	8
Current	30mA
Values	L = 18nH (Total), C = 25pF (Total)
ESD Protection	Yes
Temperature Range - Operating	-40°C to 85°C
Applications	GSM, LAN, PCS, WAN
Mounting	SMD (SMT)
Dimension	0.130" L x 0.053" W (3.30mm x 1.35mm)
Height	0.022" (0.55mm)
Win Source Part Number	1045626-IP3253CZ16-8-TTL,1
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IP3253CZ16-8-TTL,1 CAD Model

Alternative Products

Description

The IP3253CZ16-8-TTL,1 is a low pass filter manufactured by Nexperia USA Inc.

Voltage Rating: -
Mounting Type: SMD (SMT) technology
Height: 0.022" (0.55mm)
Current: 30mA
Channels: 8
Attenuation: 30dB @ 1GHz to 4GHz
Filter Order: 3rd
Center/Cutoff Frequency: 175MHz (Cutoff)
Resistance-Channel (Ohms): 8
Values: L = 18nH (Total), C = 25pF (Total)
ESD Protection: yes
Applications: GSM, LAN, PCS, and WAN applications
Case Size: 0.130" L x 0.053" W (3.30mm x 1.35mm)
Popularity: medium
