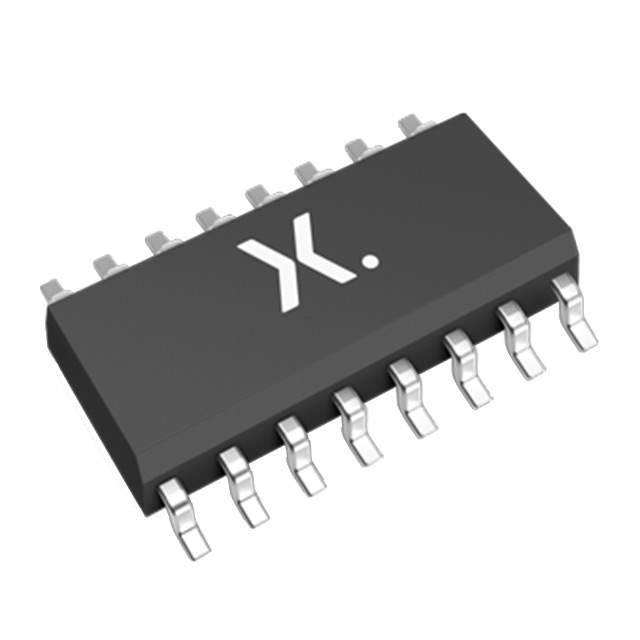

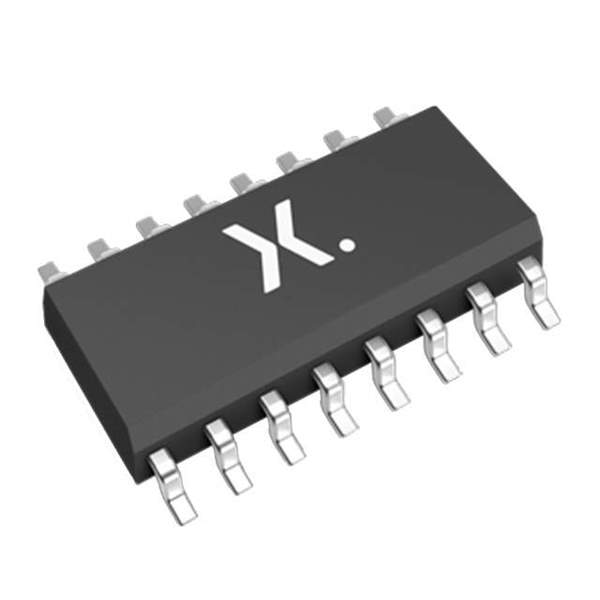

HEF4538BT-Q100J Real Image
Same model may have multiple batches, images only for reference.

HEF4538BT-Q100J

Part No HEF4538BT-Q100J
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC MULTIVIBRATOR 40NS 16SO / Monostable Multivibrator 40 ns 16-SO
Datasheet
HEF4538BT-Q100J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Multivibrators
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 4000B
Package Tape & Reel
Logic Type Monostable
Independent Circuits 2
Schmitt Trigger Input No
Propagation Delay 40 ns
Current - Output High, Low 3.4mA, 3.4mA
Voltage - Supply 3 V ~ 15 V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Base Product Number HEF4538
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 935300114118,1727-7557-1,1727-7557-2,HEF4538BT-Q100J-ND,1727-7557-6
Standard Package 2,500
Win Source Part Number 1209090-HEF4538BT-Q100J
Ultra Librarian 3D Model Ultra Librarian HEF4538BT-Q100J CAD Model

Description

The HEF4538BT-Q100J from Nexperia USA Inc. is a monostable integrated circuit with two independent circuits.

  • Standard Package: 2,500
  • Mounting: SMD (SMT) technology
  • Series: Automotive AEC-Q100 4000B
  • Voltage Supply: 3 V to 15 V
  • Propagation Delay: 40 ns
  • Current Output High: 3.4mA
  • Current Output Low: 3.4mA
  • Suitable for: Logic multivibrators
  • Schmitt Trigger Input: No
  • Operating Temperature: -40°C to 125°C
