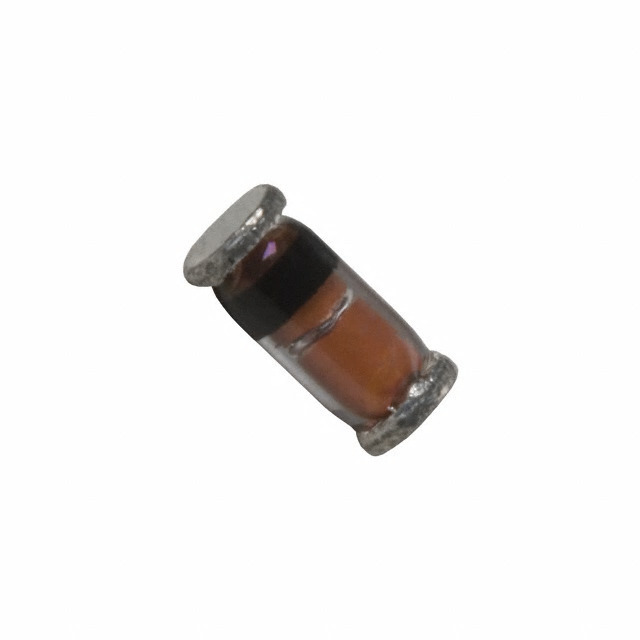

Same model may have multiple batches, images only for reference.
BZV55-C5V6,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BZV55-C5V6,115

Part No BZV55-C5V6,115
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.6V 500MW SOD80C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Voltage - Zener (Nom) (Vz) 5.6V
Tolerance ±5%
Power - Max 500mW
Impedance (Maximum) (Zzt) 40 Ohms
Current - Reverse Leakage at Vr 1μA at 2V
Voltage - Forward (Vf) (Maximum) at If 900mV at 10mA
Temperature Range - Operating -65°C ~ 200°C
Mounting Style SMD
Manufacturer Package DO-213AC, MINI-MELF, SOD-80
Supplier Device Package LLDS; MiniMelf
Part Number Series BZV55C5V6
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805024-BZV55-C5V6,115
Ultra Librarian 3D Model Ultra Librarian BZV55-C5V6,115 CAD Model

Description

The Nexperia USA Inc. BZV55-C5V6 is a zener diode with a voltage rating of 5.6V. It is manufactured by Nexperia USA Inc.

  • Voltage: 5.6V
  • Power: 500mW
  • Tolerance: ±5%
  • Impedance: 40 Ohms
  • Package: DO-213AC, MINI-MELF, SOD-80
  • Mounting: SMD
  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 1μA @ 2V
  • Series: BZV55C5V6
  • Pack Quantity: 2,500
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (unlimited)
