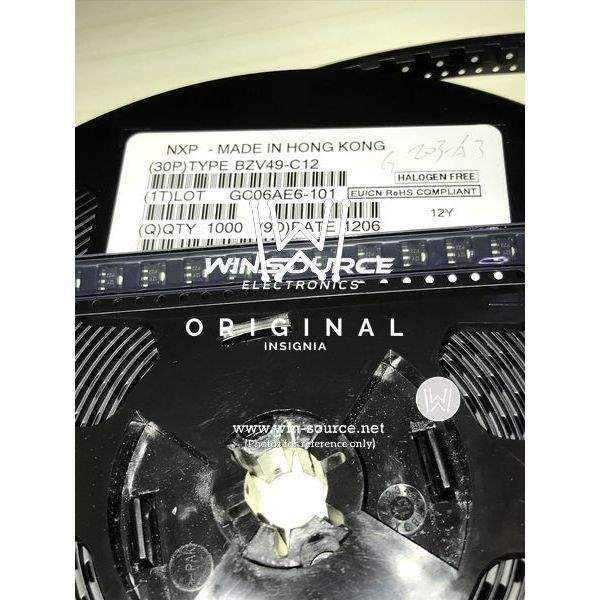

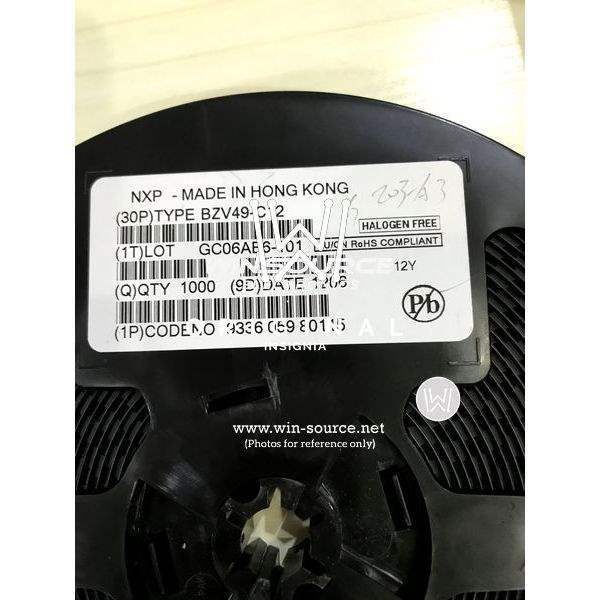

BZV49-C12,115 Nexperia USA Inc. BZV49-C12,115 real image BZV49-C12,115 label picture
Same model may have multiple batches, images only for reference.
BZV49-C12,115 Nexperia USA Inc. BZV49-C12,115 real image BZV49-C12,115 label picture
BZV49-C12,115 Nexperia USA Inc. BZV49-C12,115 real image BZV49-C12,115 label picture
Same model may have multiple batches, images only for reference.

BZV49-C12,115

Part No BZV49-C12,115
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 12V 1W SOT89
Datasheet
BZV49-C12,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 12V
Tolerance ±5%
Maximum Power Dissipation 1W
Impedance (Max) (Zzt) 25 Ohm
Current - Reverse Leakage @ Vr 100nA @ 8V
Voltage - Forward (Vf) (Max) @ If 1V @ 50mA
Temperature Range - Operating -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-89-3
Win Source Part Number 1026102-BZV49-C12,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BZV49-C12,115 CAD Model

Description

The Nexperia USA Inc. BZV49-C12,115 is a zener type discrete semiconductor product with a tolerance of ±5%.

  • Voltage - Forward (Vf) (Max) @ If: 1V @ 50mA
  • Current - Reverse Leakage @ Vr: 100nA @ 8V
  • Voltage - Zener (Nom) (Vz): 12V
  • Impedance (Max) (Zzt): 25 Ohm
  • Package: SOT-89-3
  • Maximum Power Dissipation: 1W
  • Popularity: popular
  • Supply and Demand Status: sufficient
