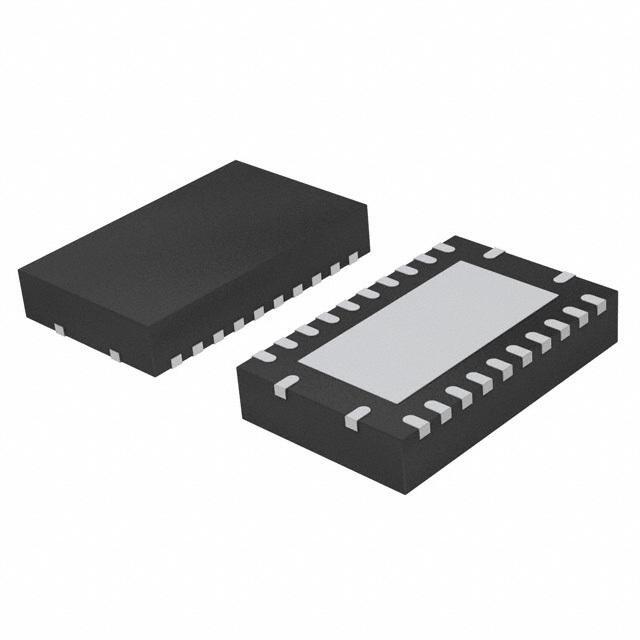

Same model may have multiple batches, images only for reference.
74HC154BQ,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74HC154BQ,115

Part No 74HC154BQ,115
Manufacturer Nexperia USA Inc.
Catalog Logic - Signal Switches, Multiplexers, Decoders
Description IC 4:16 DECODER/DEMUX 24DHVQFN
Datasheet
74HC154BQ,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Nexperia USA Inc.
Series 74HC
Packaging Reel package
Part Status Obsolete(EOL)
Type Decoder/Demultiplexer
Independent Circuits 1
Current - Output High, Low 5.2mA, 5.2mA
Voltage Supply Source Single Supply
Operating Supply Voltage 2 V ~ 6 V
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 24-VFQFN Exposed Pad
Manufacturer Package 24-DHVQFN (5.5x3.5)
Win Source Part Number 765397-74HC154BQ,115
Popularity Medium
Supply and Demand Status Limited
Family Name 74HC154
Introduction Date September 01, 1993
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 74HC154BQ,115 CAD Model

Description

The Nexperia USA Inc. 74HC154BQ,115 is a decoder/demultiplexer with a single independent circuit and a voltage supply source of 2V to 6V.

  • Series: 74HC
  • Mounting: SMD
  • Supply and Demand Status: Limited
  • Operating Temperature Range: -40°C to 125°C
  • Package: 24-VFQFN exposed pad
