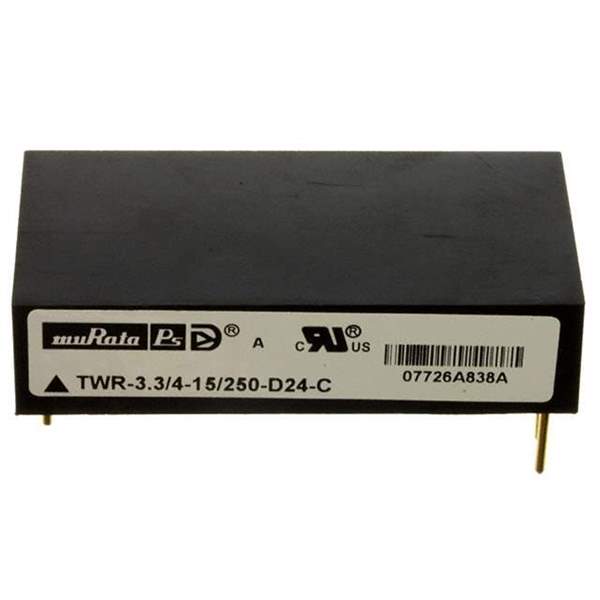

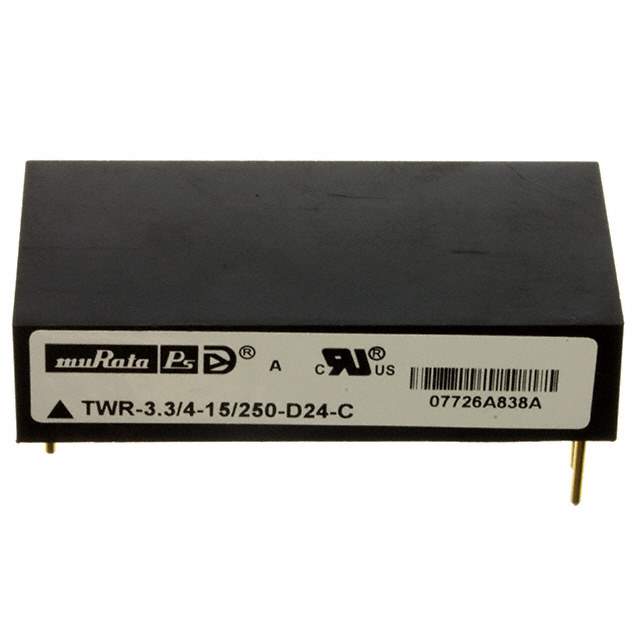

TWR-3.3/4-15/250-D24-C Real Image
Same model may have multiple batches, images only for reference.

TWR-3.3/4-15/250-D24-C

Part No TWR-3.3/4-15/250-D24-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description Isolated, High Reliability | DC DC CONVERTER 3.3V +/-15V 20W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Status Obsolete
Type Isolated Module
Number of Outputs 3
Voltage - Input (Minimum) 18V
Voltage - Input (Maximum) 36V
Voltage - Output 1 3.3V
Voltage - Output 2 15V
Voltage - Output 3 -15V
Current - Output (Maximum) 4A, 250mA, 250mA
Power (W) 20W
Voltage - Isolation 1.5kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 100°C
Efficiency 86%
Mounting Style Through Hole
Manufacturer Package 7-DIP Module
Parts Dimension 2.00" L x 1.00" W x 0.49" H (50.8mm x 25.4mm x 12.5mm)
Manufacturer Pack Quantity 96
MSL Level 1 (Unlimited)
Win Source Part Number 1275081-TWR-3.3/4-15/250-D24-C
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TWR-3.3/4-15/250-D24-C CAD Model

Description

The TWR-3.3/4-15/250-D24-C is an isolated module type electronic component manufactured by Murata Power Solutions Inc.

  • Supply and Demand Status: Limited
  • Component Type: Power Supply-Board Mount
  • Mounting Style: Through-Hole
  • Voltage Isolation: 1.5kV
  • Number of Outputs: 3
  • Voltage Output 1: 3.3V
  • Voltage Output 2: 15V
  • Voltage Output 3: -15V
  • Efficiency: 86%
  • Manufacturer Package: 7-DIP Module
  • Current Output: 4A, 250mA, 250mA
  • Power: 20W
  • Input Voltage: 18V to 36V
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 100°C
