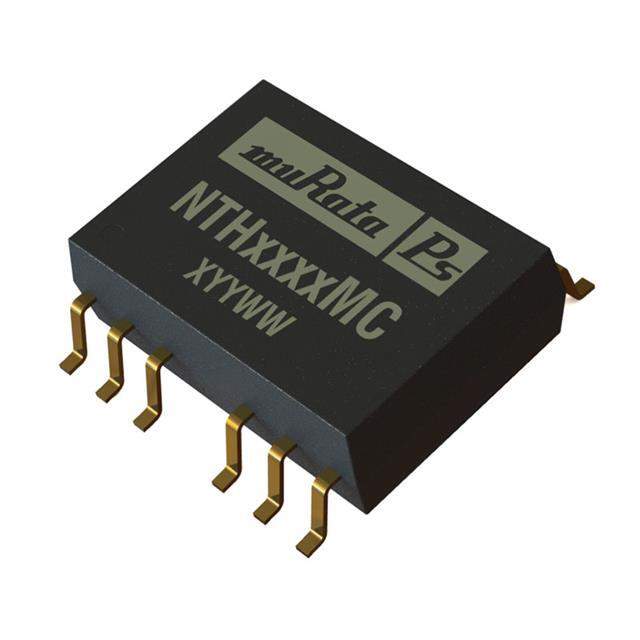

NTH1209MC-R Real Image
Same model may have multiple batches, images only for reference.

NTH1209MC-R

Part No NTH1209MC-R
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 2W 12VIN 9V DUAL 1KV / Module DC-DC 12VIN 2-OUT 9V/-9V 0.111A/-0.111A 2W 12-Pin Mini-SMD T/R
Datasheet
NTH1209MC-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NTH
Packaging Reel package
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Maximum) 111mA, 111mA
Power (Watts) 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 83%
Mounting SMD
Package 26-SMD Module, 12 Leads
Dimension 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm)
Win Source Part Number 790847-NTH1209MC-R
Popularity Medium
Supply and Demand Status Limited
Family Name NTH1209MC
Introduction Date March 16, 2006
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NTH1209MC-R CAD Model

Description

The Murata Power Solutions Inc. electronic component with the part number 790847-NTH1209MC-R is an isolated module with a power output of 2W.

  • Outputs: 2
  • Voltage: 9V and -9V
  • Series: NTH
  • Package: 26-SMD module, 12 leads
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 83%
  • Package Type: Reel
  • ECCN: EAR99
  • Estimated EOL Date: 2027
  • Alternative Parts: R2D10-1209-R, VAT2-S12-D9-SMT, VAT2-S12-D9-SMT-TR, CTDD3220DF-1209-D1K-2
