Same model may have multiple batches, images only for reference.

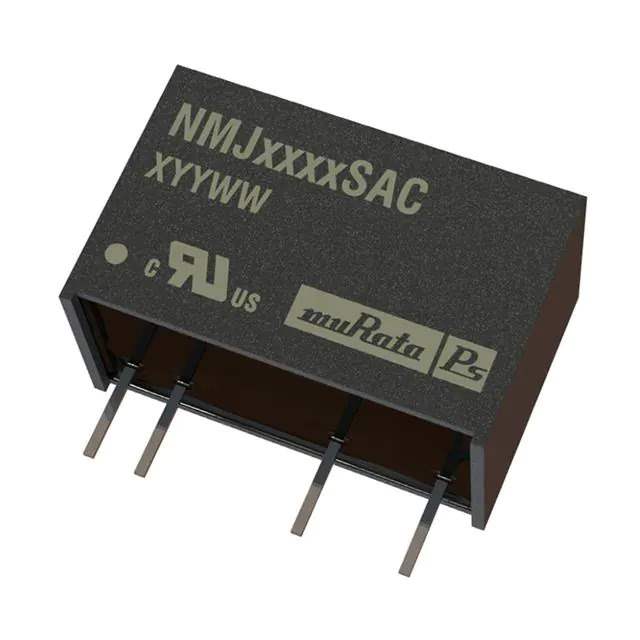

NMJ0505SAC Real Image
Same model may have multiple batches, images only for reference.

NMJ0505SAC

Part No NMJ0505SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMJ (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 60°C
Efficiency 68%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
Base Product Number NMJ05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649164-NMJ0505SAC
Ultra Librarian 3D Model Ultra Librarian NMJ0505SAC CAD Model

Description

The NMJ0505SAC is a 1W isolated module DC-DC converter designed for power supply applications in commercial IT equipment.

  • Power: 1W
  • Applications: power supply applications in commercial IT equipment
  • Size: 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm)
  • Mounting: through hole
  • Voltage Isolation: 5.2 kV
  • Outputs: single
  • Maximum Output Current: 200mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Efficiency: 68%
  • Operating Temperature: -40°C to 60°C
  • Status: active product from Murata Power Solutions Inc.
