Same model may have multiple batches, images only for reference.

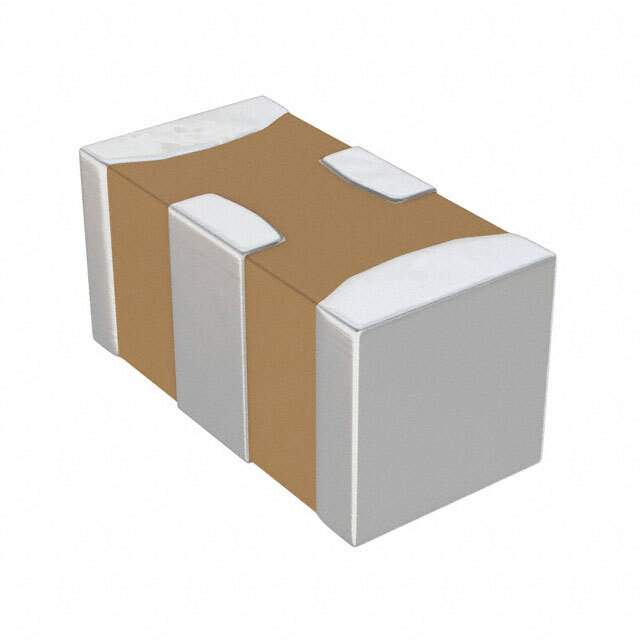

NFM15PC224R1A3D Real Image
Same model may have multiple batches, images only for reference.

NFM15PC224R1A3D

Part No NFM15PC224R1A3D
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP FEEDTHRU 0.22UF 10V 0402 / 0.22 µF Feed Through Capacitor 10V 2 A 30mOhm 0402 (1005 Metric)
Datasheet
NFM15PC224R1A3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Feed Through Capacitors
Mfr Murata Electronics
Series EMIFIL®, NFM15
Package Tape & Reel
Capacitance 0.22 µF
Tolerance ±20%
Voltage - Rated 10V
Current 2 A
DC Resistance (DCR) (Max) 30mOhm
Temperature Range - Operating -55°C ~ 85°C
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.020" (0.50mm)
Base Product Number NFM15PC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Other Names 490-16919-2,490-16919-1,490-16919-6,NFM15PC224R1A3D-ND
Standard Package 10,000
Win Source Part Number 957699-NFM15PC224R1A3D
Ultra Librarian 3D Model Ultra Librarian NFM15PC224R1A3D CAD Model

Description

The NFM15PC224R1A3D product from Murata Electronics is a feed through capacitor filter with a Win Source Part Number of 957699-NFM15PC224R1A3D.

  • Category: filters
  • Series: EMIFIL, NFM15 series
  • Package: tape & reel
  • Capacitance: 0.22 μF
  • Tolerance: ±20%
  • Voltage - Rated: 10V
  • DC Resistance (DCR) (Max): 30mOhm
