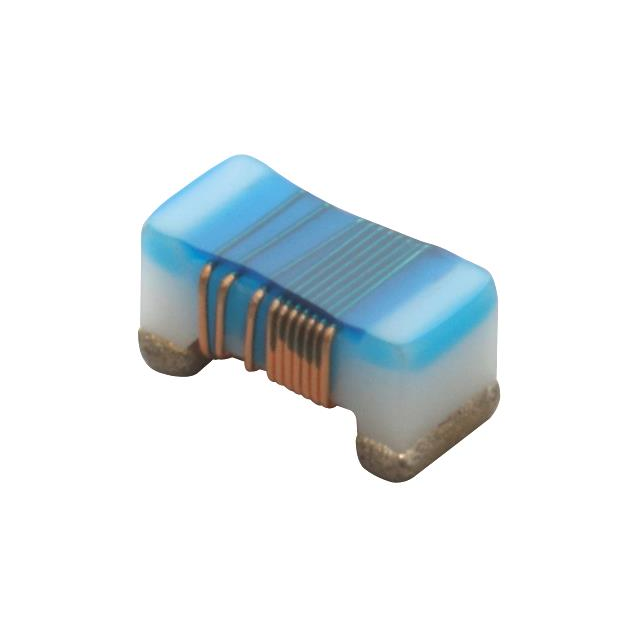

LQW18AN22NG0ZD Real Image
Same model may have multiple batches, images only for reference.

LQW18AN22NG0ZD

Part No LQW18AN22NG0ZD
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22NH 500MA 300MOHM SMD / 22 nH Unshielded Wirewound Inductor 500 mA 300mOhm 0603 (1608 Metric)
Datasheet
LQW18AN22NG0ZD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Wirewound
Material - Core Non-Magnetic
Inductance 22 nH
Tolerance ±2%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 300mOhm
Q @ Freq 25 @ 250MHz
Frequency - Self Resonant 4GHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQW18AN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 490-16284-1,490-16284-2,490-16284-6
Standard Package 4,000
Win Source Part Number 1329222-LQW18AN22NG0ZD
Ultra Librarian 3D Model Ultra Librarian LQW18AN22NG0ZD CAD Model

Description

The LQW18AN22NG0ZD is a wirewound type fixed inductor from Murata Electronics.

  • Shielding: Unshielded
  • Inductance: 22nH
  • Tolerance: ±2%
  • Material: Non-Magnetic
  • DC Resistance: 300mOhm
  • Current Rating: 500mA
  • Self-Resonant Frequency: 4GHz
  • AEC-Q200 Rated: Yes
  • Q: 25 @ 250MHz
  • Temperature Range: -55°C to 125°C
  • Package: 0603 (1608 Metric)
