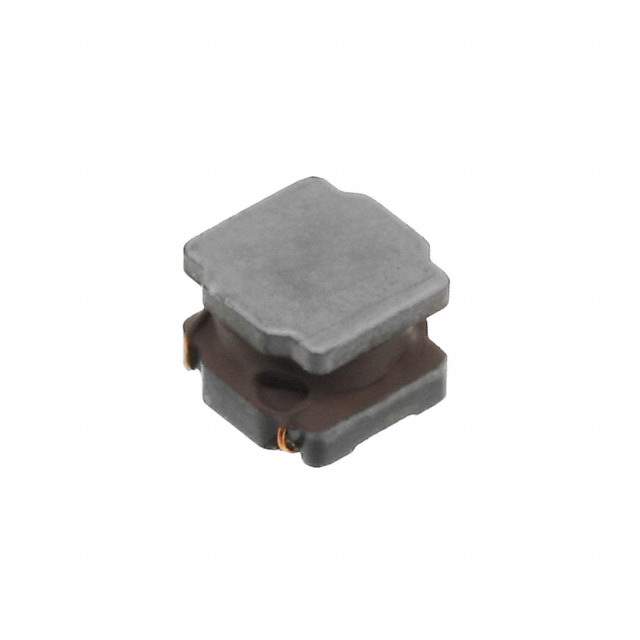

LQH6PPN680M43L Real Image
Same model may have multiple batches, images only for reference.

LQH6PPN680M43L

Part No LQH6PPN680M43L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 68UH 1A 289 MOHM SMD / 68 µH Shielded Wirewound Inductor 1 A 289mOhm 2424 (6060 Metric)
Datasheet
LQH6PPN680M43L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Product Status Obsolete
Type Wirewound
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 289mOhm
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2424 (6060 Metric)
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number LQH6PPN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 490-5435-6,490-5435-2,490-5435-1
Standard Package 250
Win Source Part Number 1327894-LQH6PPN680M43L
Ultra Librarian 3D Model Ultra Librarian LQH6PPN680M43L CAD Model

Description

The Murata Electronics electronic component with Win Source Part Number 1327894-LQH6PPN680M43L is a fixed inductor that is currently obsolete.

  • Shielding: Shielded
  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Inductance: 68 µH
  • Tolerance: ±20%
  • DC Resistance: 289mOhm
  • Temperature Range: -40°C ~ 85°C
