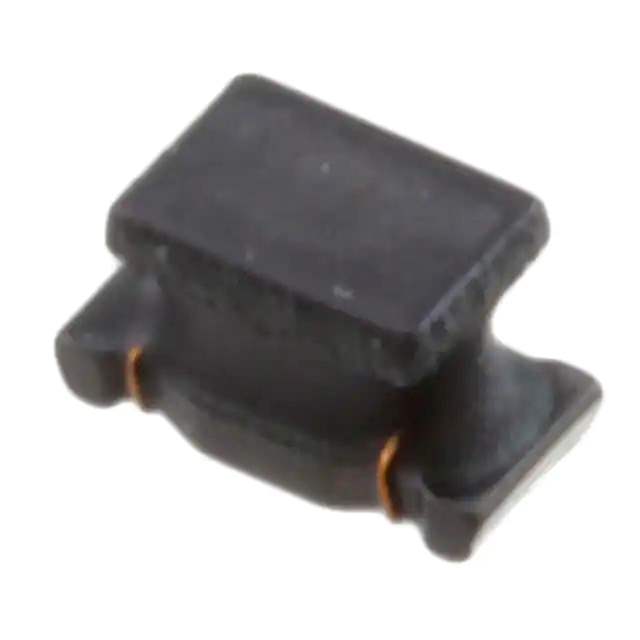

The LQH31MNR47K03L is a drum core, wirewound inductor from Murata Electronics.

• Series: LQH31 series.
• Size: 0.126" L x 0.063" W (3.20mm x 1.60mm).
• Inductance: 470 nH.
• Tolerance: ±10%.
• DC Resistance (DCR): 830mOhm.
• Current Rating: 215 mA.
• Operating Temperature: -40°C to 85°C.
• Mounting: Surface mount.
• Package: 1206 (3216 Metric) package.
• Core Material: Ferrite.
• Q Value: 30 @ 25MHz.
• Self-Resonant Frequency: 200MHz.
• Commonly used in: Power supplies, RF amplifiers, and communication systems.
• Standard Package: 2,000 pcs.
• Status: Active.
