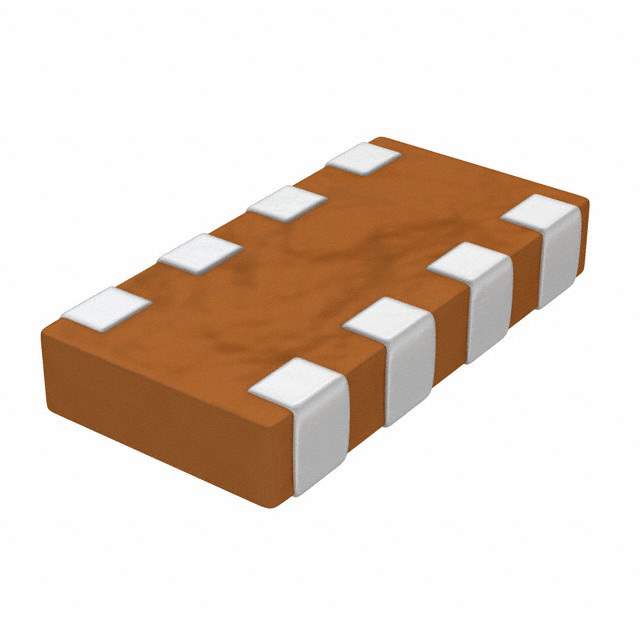

The LLA319R71A105MA01L is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. It is designed for general purpose applications where high capacitance and small size are required.

Applications

• Bypass capacitors in digital circuits
• Smoothing capacitors in power supplies
• Decoupling capacitors for integrated circuits
• General purpose applications
• Consumer electronics

Features

• High capacitance value
• Small case size
• Stable temperature characteristics
• Low ESR (Equivalent Series Resistance)
• RoHS compliant

Benefits

• Effective noise suppression in digital circuits.
• Stable performance over a wide temperature range.
• Compact design allows for high-density board layouts.
• Reduced power loss and improved efficiency.
• Environmentally friendly due to RoHS compliance.

Specifications

The LLA319R71A105MA01L has a capacitance of 1.0 μF with a tolerance of ±20%. It has a rated voltage of 10VDC. The temperature coefficient is X7R, indicating a capacitance variation of ±15% over the temperature range of -55°C to +125°C. The case size is 1206 (3.2mm x 1.6mm). The device is surface mountable. It offers excellent stability and low ESR. This capacitor is suitable for high-density applications where space is limited.

This multilayer ceramic capacitor is manufactured using highly reliable materials and processes. It's designed to withstand harsh operating conditions. The X7R dielectric provides good temperature stability. The compact 1206 package allows for automated placement and soldering. The high capacitance value in a small package makes it ideal for decoupling and bypass applications.
