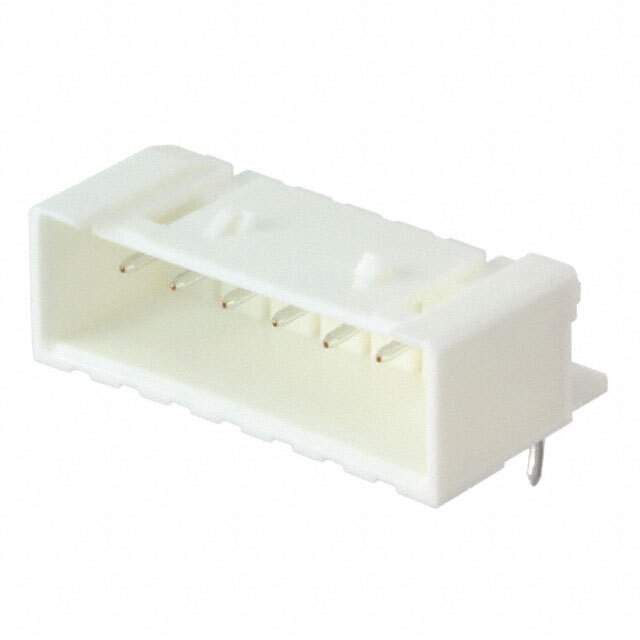

53426-0710 Real Image
Same model may have multiple batches, images only for reference.

53426-0710

Part No 53426-0710
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, PCB Mount, RECEPT, 7 Contacts, PIN, 0.098 Pitch, PC TAIL W/RETNN Terminal
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Material Bronze, Copper, Tin
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Gender Male
Glow Wire Compliant Non-compliant
Height 6.9 mm
Housing Material Polyester
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 7
Number of Contacts 7
Number of Positions 7
Number of Rows 1
Orientation Right Angle
Pitch 2.5 mm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Win Source Part Number 1039175-53426-0710
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53426-0710 CAD Model

Description

The Molex, LLC 53426-0710 is a circular connector housing that has 7 positions and a pitch of 2.5 mm.

  • Voltage Rating: 250 V
  • Current Rating: 3 A
  • Contact Material: bronze, copper, and tin
  • Contact Resistance: 20 mΩ
  • Housing Material: polyester
  • Plating: tin
  • Height: 6.9 mm
  • Orientation: right-angle
  • RoHS Compliant: yes
  • Maximum Operating Temperature: 105 degrees Celsius
  • Mounted: through hole
  • Glow Wire Non-Compliant: yes
