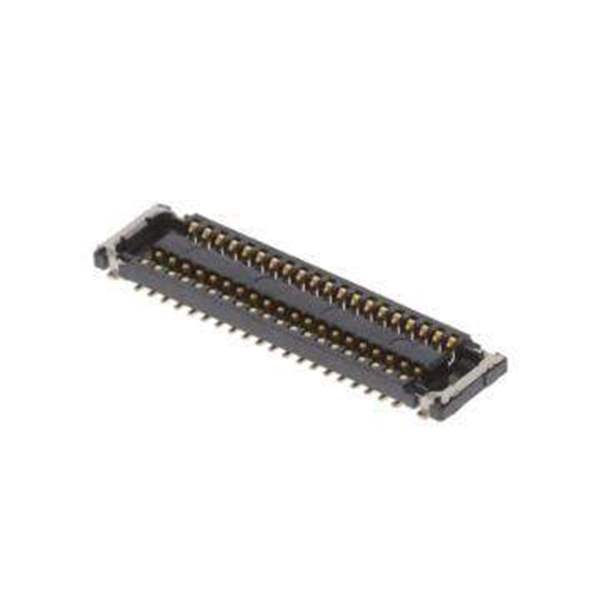

5055504020 Molex
Same model may have multiple batches, images only for reference.

5055504020

Part No 5055504020
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 40POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Mounting Type Surface Mount
Features Solder Retention
Win Source Part Number WS1208871-5055504020
Ultra Librarian 3D Model Ultra Librarian 5055504020 CAD Model

Description

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
