Same model may have multiple batches, images only for reference.

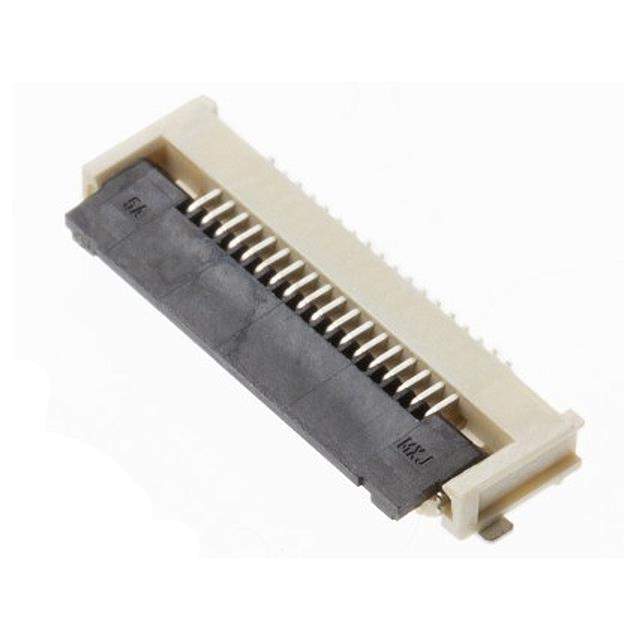

505278-0533 Real Image
Same model may have multiple batches, images only for reference.

505278-0533

Part No 505278-0533
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 5POS 0.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000732-505278-0533
Manufacturer Molex
Category Connectors, Interconnects- FFC, FPC (Flat Flexible) Connectors- FFC, FPC (Flat Flexible) Connector Assemblies
Series Easy-On FS19 505278
Package Tape & Reel (TR) /Cut Tape (CT)
Product Status Active
Base Product Number 505278
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Pitch 0.020" (0.50mm)
Ultra Librarian 3D Model Ultra Librarian 505278-0533 CAD Model

Description

The Molex Easy-On FS19 505278 is a FFC, FPC (Flat Flexible) Connector Assembly with a pitch of 0.020" (0.50mm).

  • Manufacturer: Molex
  • Series: Easy-On FS19 505278, 505278
  • Connector Type: FFC, FPC (Flat Flexible) Connector Assembly
  • Pitch: 0.020" (0.50mm)
  • Packaging: Tape & Reel (TR) /Cut Tape (CT)
  • Connector/Contact Type: Contacts, Bottom
  • Flat Flex Type: FFC, FPC
  • Mounting Type: Surface Mount, Right Angle
  • Status: Active
  • HTSUS: 8536.69.4040
