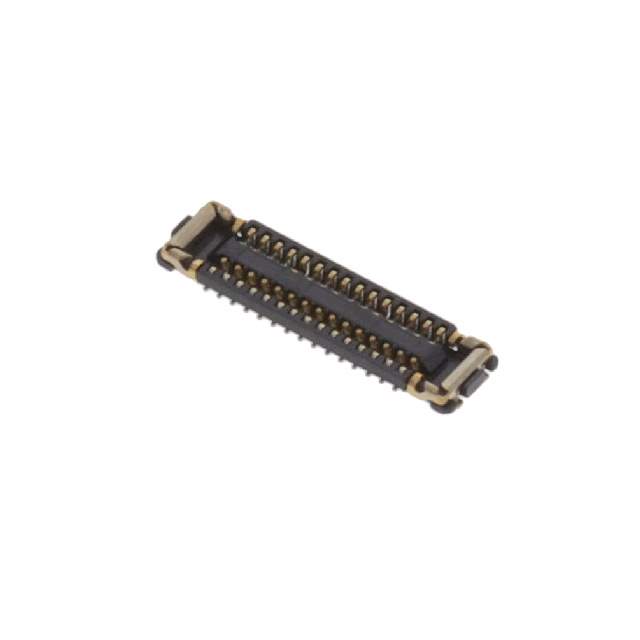

The Molex 505066-3022 is a SlimStack Housing designed for fine-pitch, board-to-board connections requiring minimal height and reliable performance. This housing is part of the SlimStack family, known for its low profile and robust design, making it ideal for compact electronic devices. It ensures secure mating and dependable electrical contact in demanding applications.

Applications:

• Smartphones
• Tablets
• Wearable devices
• Laptop computers
• Medical devices

Features:

• SlimStack Series
• 30 Circuits
• Dual Row
• Fine Pitch
• Low Profile Design

Benefits:

• Space Saving: The SlimStack series minimizes height for compact device designs.
• Reliable Connection: Robust design ensures secure mating and consistent electrical contact.
• High Density: Fine pitch allows for a high number of circuits in a small area.
• Versatile Usage: Suitable for board-to-board connections in a variety of compact electronic applications.

Additional Details:

The 505066-3022 housing is typically manufactured from a high-temperature thermoplastic material offering excellent electrical insulation and mechanical strength. It is designed to mate with corresponding SlimStack terminals. Accurate alignment and proper soldering techniques are essential for optimal performance. This SlimStack connector is widely used where space is a critical constraint.
