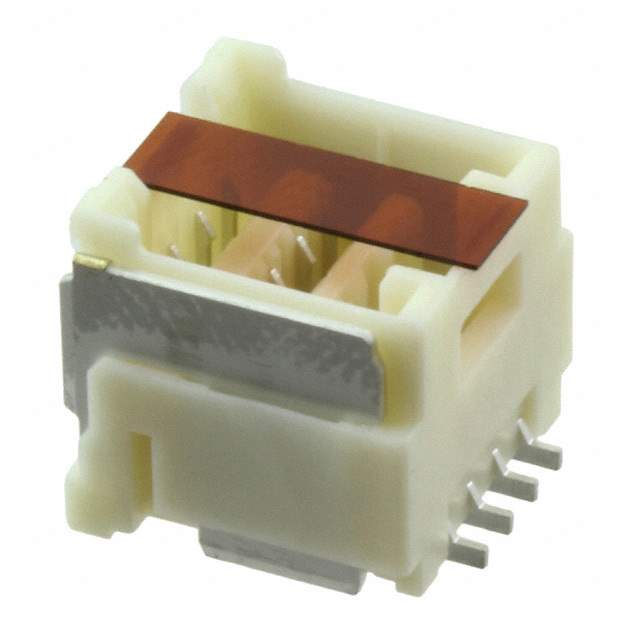

Same model may have multiple batches, images only for reference.

503154-0890

Name: 503154-0890
Brand: Molex, LLC
SKU: 1038007
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	503154-0890
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	CLIK-Mate Vertical Receptacle, PCB Receptacle, Surface Mount, 2 Rows, 8 Contacts, 1.5mm Pitch
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Beige
Connector Type	Center Strip Contact, Receptacle
Contact Material	Nickel, Tin
Contact Plating	Tin
Country of Origin	JP
Current Rating	2 A
Depth	9.5 mm
Fastening Type	Latch
Gender	Receptacle
Glow Wire Compliant	Non-compliant
Height	9 mm
Housing Color	Beige
Housing Material	Resin
Length	10.3 mm
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Circuits	8
Number of Contacts	8
Number of Pins	8
Number of Positions	8
Number of Rows	2
Orientation	Vertical
Pitch	1.5 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Termination	Solder
Voltage Rating	100 V
Win Source Part Number	1038007-503154-0890
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 503154-0890 CAD Model

Alternative Products

Description

The Molex, LLC 1038007-503154-0890 is a two-row, 8-position, vertical connector with a pitch of 1.5 mm.

Rows: Two
Positions: 8
Orientation: Vertical
Pitch: 1.5 mm
Voltage Rating: 100 V
Current Rating: 2 A
Contact Material: Nickel and Tin
Contact Plating: Tin
Housing Material: Resin
Housing Color: Beige
Packaging: Tape and Reel
Length: 10.3 mm
Height: 9 mm
Category: Circular Connectors-Housings
RoHS Compliant: Yes
