Part No 5022370517
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors

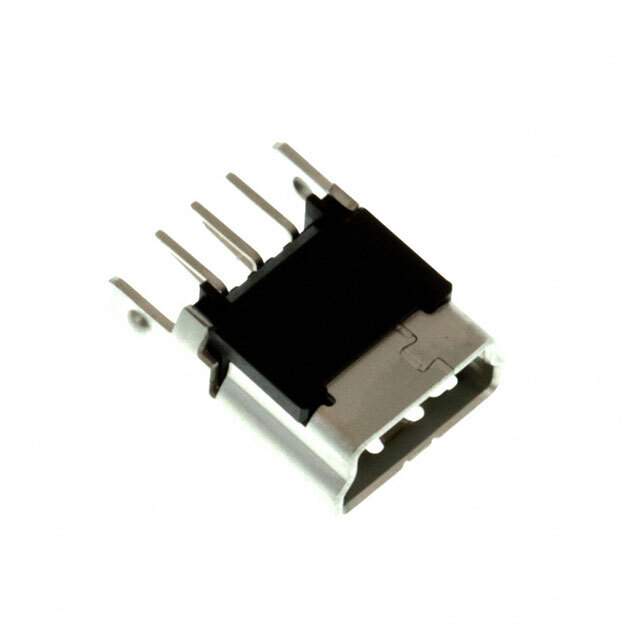

Description CONN RCPT MINI USB B 5POS VERT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Molex, LLC
Series 502237
Package Tray
Product Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Mounting Type Through Hole
Mounting Feature Vertical
Termination Solder
Number of Ports 1
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 502237
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856268-5022370517
Ultra Librarian 3D Model Ultra Librarian 5022370517 CAD Model

Description

The 794613 is a USB - mini B Connector Assembly from Molex.

  • Series: 502237
  • Contacts: 5
  • Termination: Solder
  • Contact Finish: Gold
  • Shielded: Yes
  • Mounting: Vertical
  • Package: Tray
  • Standard Package: 1,000 pieces
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 502237
  • Product Status: Active
