5015912011

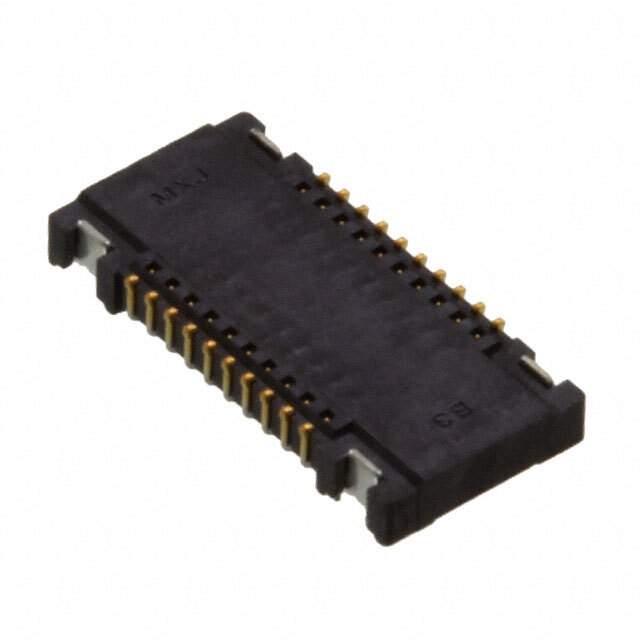

Name: 5015912011
Brand: Molex, LLC
SKU: 546252
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5015912011
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	0.40mm (.016") Pitch SlimStack Board-to-Board Receptacle, SMT, Dual Row, Vertical Stacking \| CONN RCPT 20POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Style	SMD
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	3.94μin (0.10μm)
Mated Stacking Heights	0.9mm
Height Above Board	0.035" (0.88mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1128940-5015912011
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 5015912011 CAD Model

Alternative Products

Description

The Molex 5015912011 is a receptacle connector with center strip contacts.

Positions: 20
Pitch: 0.016" (0.40mm)
Packaging: Reel
Rows: Two
Features: Solder Retention
Contact Finish: Gold
Contact Finish Thickness: 3.94μin (0.10μm)
Mated Stacking Heights: 0.9mm
Height Above Board: 0.035" (0.88mm)
Category: Connectors and Interconnects
Popularity: Medium
Pack Quantity: 1
MSL Level: 1 (Unlimited)
