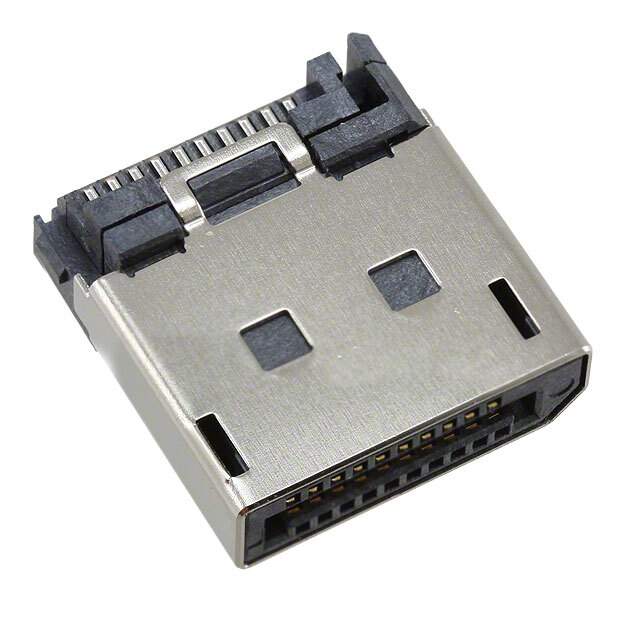

Same model may have multiple batches, images only for reference.

0472710111

Get a Quote

Part No	0472710111
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	CONN PLUG DISPLAYPORT 20POS SLD / DisplayPort Plug Connector 20 Position Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Molex
Series	47271
Package	Bulk
Product Status	Obsolete
Connector Type	DisplayPort
Number of Contacts	20
Gender	Plug
Mounting Type	Free Hanging (In-Line)
Termination	Solder
Temperature Range - Operating	-20°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	0.5A
Voltage - Rated	40VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	047271
Standard Package	300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1349196-0472710111
Ultra Librarian 3D Model	Ultra Librarian 0472710111 CAD Model

Description

The 47271 series DisplayPort connector is a shielded plug with 20 contacts.

Connector Type: DisplayPort Plug
Number of Contacts: 20
Shielded: Yes
Voltage Rating: 40VAC
Termination: Solder
Mounting: Free Hanging (In-Line)
Contact Finish: Gold
Packaging: Bulk
Operating Temperature: -20°C to 85°C
Shell/Shielding Material: Copper Alloy
Mating Cycle: 10000
Maximum Current: 0.5A
Flammability Rating: UL94 V-0
