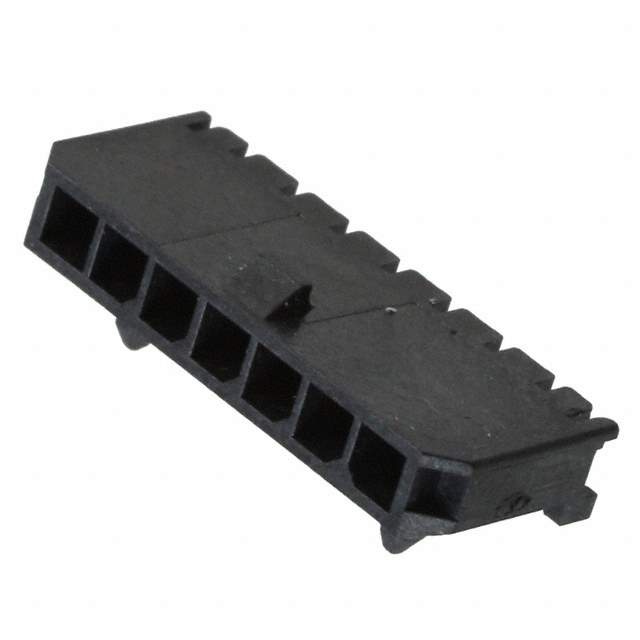

43650-0700 Real Image
Same model may have multiple batches, images only for reference.

43650-0700

Part No 43650-0700
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Wire to Board HDR 7 POS 3mm Solder RA Side Entry Thru-Hole Micro-Fit 3.0™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 5 A
Depth 9.9 mm
Fastening Type Ramp
Gender Male
Housing Color Black
Housing Material Polymer
Lead Pitch 3 mm
Length 24.65 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 6
Number of Contacts 7
Number of Ports 1
Number of Positions 7
Number of Rows 1
Number of Terminals 7
Orientation Right Angle, Vertical
Pitch 3 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating (DC) 250 V
Win Source Part Number 1166455-43650-0700
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43650-0700 CAD Model

Description

The Molex Circular Connector Housings are a set of male pin connectors that come with 7 positions and a pitch of 3mm.

  • Material: brass
  • Contact Plating: tin
  • Housing Material: polymer
  • Housing Color: black
  • Contact Resistance: 10mΩ
  • Plating: tin
  • Current Rating: 5A
  • Voltage Rating (DC): 250V
  • Termination Style: solder
  • Fastening Type: ramp
  • Length: 24.65mm
  • Depth: 9.9mm
  • RoHS Compliant: RoHS compliant
  • Contains: lead
