0039291088

Get a Quote

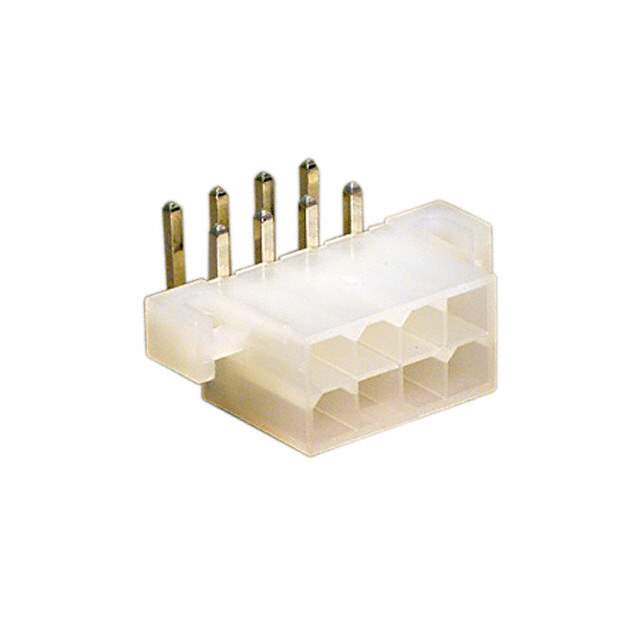

Part No	0039291088
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 8POS 4.2MM / Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.378" (9.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Mounting Flange
Material Flammability Rating	UL94 V-2
Insulation Color	Natural
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	003929
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM3903,39291088,WM3903-NDR,39-29-1088-P,5569-08A1,39-29-1088
Standard Package	225
Win Source Part Number	1336687-0039291088
Ultra Librarian 3D Model	Ultra Librarian 0039291088 CAD Model

Description

This 8-contact male pin header from Molex has a Win Source Part Number of 1336687-0039291088.

Connector Style: Board-to-Cable/Wire
Pitch Mating: 0.165" (4.20mm)
Contact Finish: Tin
Contact Finish Thickness: 100.0µin (2.54µm)
Mounting Type: Through-Hole, Right-Angled
Features: Mounting Flange
Applications: General Purpose, Industrial, Telecommunications
Package: Bulk
ECCN: EAR99
HTSUS: 8536.69.4040
