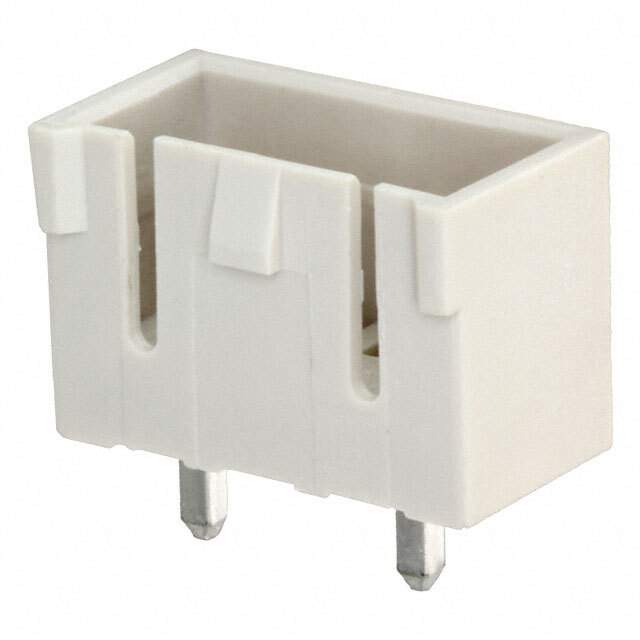

Same model may have multiple batches, images only for reference.

0353280260

Name: 0353280260
Brand: Molex, LLC
SKU: 1333100
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0353280260
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 7.92MM / Connector Header Through Hole 2 position 0.312" (7.92mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.228" (5.80mm)
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.394" (10.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Base Product Number	035328
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	35328-0260,035328-0260,WM13199,353280-0260,0353280260-ND,353280260
Standard Package	1
Win Source Part Number	1333100-0353280260
Ultra Librarian 3D Model	Ultra Librarian 0353280260 CAD Model

Alternative Products

Description

The Molex Rectangular Connector Header is a male pin connector designed for use in electronic devices that require a secure and reliable connection.

Positions: Two
Contact Material: Brass
Pitch: 0.312" (7.92mm)
Contact Length Mating: 0.228" (5.80mm)
Contact Length Post: 0.134" (3.40mm)
Shrouded: 4 Walls
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Color: Natural
Flammability Rating: UL94 V-0
Mounting Type: Through-Hole
Fastening: Locking Ramp
Application: Board to Cable/Wire
Operating Temperature Range: -40°C ~ 105°C
