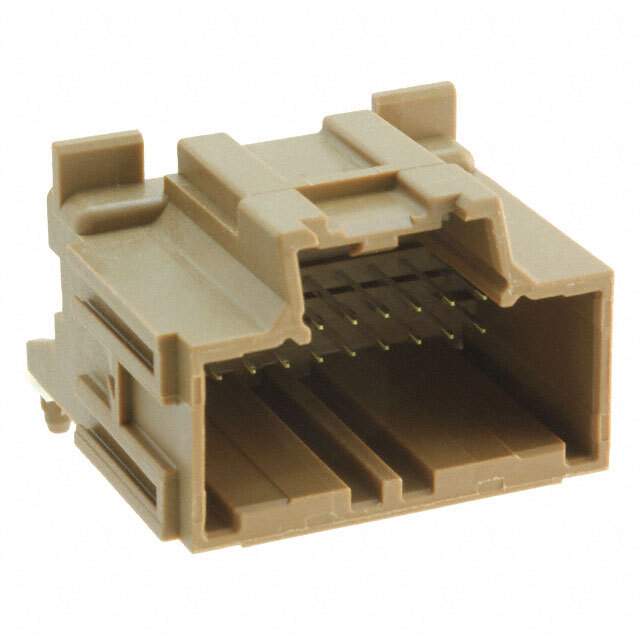

34691-0202 Real Image
Same model may have multiple batches, images only for reference.

34691-0202

Part No 34691-0202
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Stac64 Right-Angle Header Assembly, 20 Circuits, Polarization C, Brown, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 0202
Color Brown
Connector Type Rectangular
Contact Material Brass
Contact Plating Tin
Country of Origin CN
Current Rating 10 A
Depth 31.89 mm
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 22.05 mm
Housing Material Thermoplastic
Max Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 20
Number of Contacts 20
Number of Positions 20
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 500 V
Voltage Rating (DC) 500 V
Width 34.04 mm
Win Source Part Number 1212616-34691-0202
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 34691-0202 CAD Model

Description

The Molex 1212616-34691-0202 is a rectangular connector with a pitch of 2.54 mm.

  • Pitch: 2.54 mm
  • Positions: 20
  • Color: Brown
  • Gender: Male
  • Rows: Two
  • Termination: Through-Hole
  • Contact Material: Brass
  • Voltage Rating: 500 V
  • Current Rating: 10 A
  • Contact Plating: Tin
  • Housing Material: Thermoplastic
  • Width: 34.04 mm
  • Height: 22.05 mm
