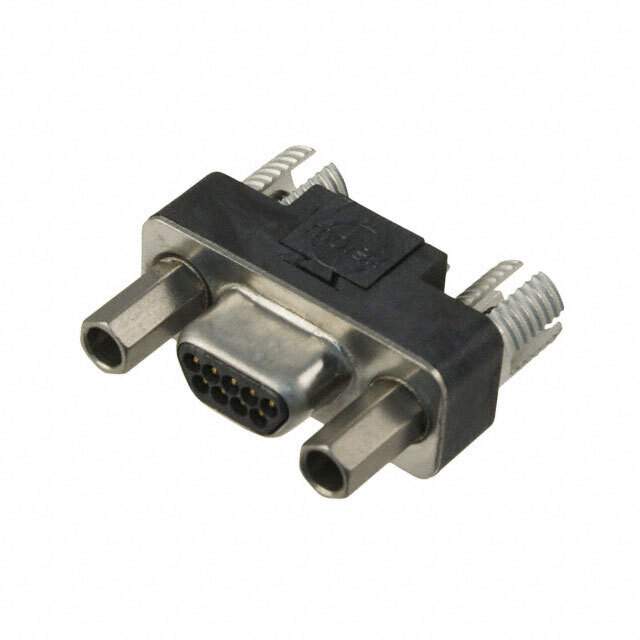

0836119023

Part No 0836119023
Manufacturer Molex, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN MICRO-D PLUG 9POS VERT SLDR / 9 Position D-Type, Micro-D Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Mfr Molex, LLC
Series Commercial Micro-D Series 83611
Package Tube
Connector Style D-Type, Micro-D
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Backset Spacing -
Features Shielded
Voltage Rating -
Color -
Contact Form -
Dielectric Material Liquid Crystal Polymer (LCP)
Wire Gauge -
Contact Material Copper Alloy
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 083611
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 162 pcs
Win Source Part Number 1381191-0836119023
Ultra Librarian 3D Model Ultra Librarian 0836119023 CAD Model

Description

The Commercial Micro-D Series 83611 is a shielded D-Sub connector assembly designed for signal transmission.

  • Series: Commercial Micro-D
  • Type: D-Sub Connector Assembly
  • Contact Gender: Plug, Male Pins
  • Positions: 9
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin
  • Shell Material: Steel, Nickel Plated
  • Temperature Range: -40°C to 125°C
  • Applications: Telecommunications, Automotive
  • Packaging: Tube
  • Standard Package Quantity: 162 pieces
  • Mating Side Feature: Flange, Female Screwlock (2-56)
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • Current Rating: 1A
  • REACH Status: Unaffected
  • Win Source Part Number: 1381191-0836119023
