Same model may have multiple batches, images only for reference.

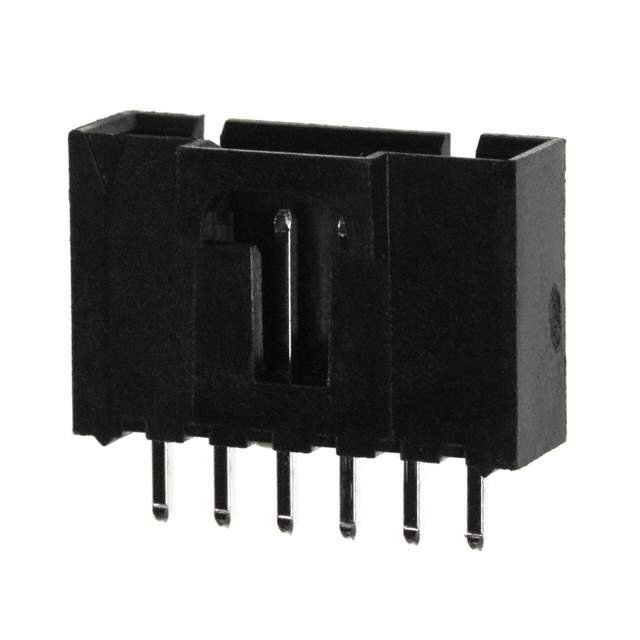

0705430040 Real Image
Same model may have multiple batches, images only for reference.

0705430040

Part No 0705430040
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 18 Weeks
Features Connector Header position
Manufacturer Molex, LLC
Series SL 70543
Package Tube
Family Name 70543
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 705430040, 70543-0040-ND, 70543-0040-E, 070543-0040-E, 70543-0040-TB90, 070543-0040, 70543-0040-TB30, A705430040, WM4828, WM4828-NDR, 70543-0040, 705430040-E, 0705430040-E
Quantity per package 1440
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 849108-0705430040
Ultra Librarian 3D Model Ultra Librarian 0705430040 CAD Model

Description

The Molex 849108-0705430040 is a tube packaging connector header position with a pitch of 70543 and a medium popularity. It is RoHS compliant and has a quantity per package of 1440. It is suitable for use in connectors.
