Same model may have multiple batches, images only for reference.

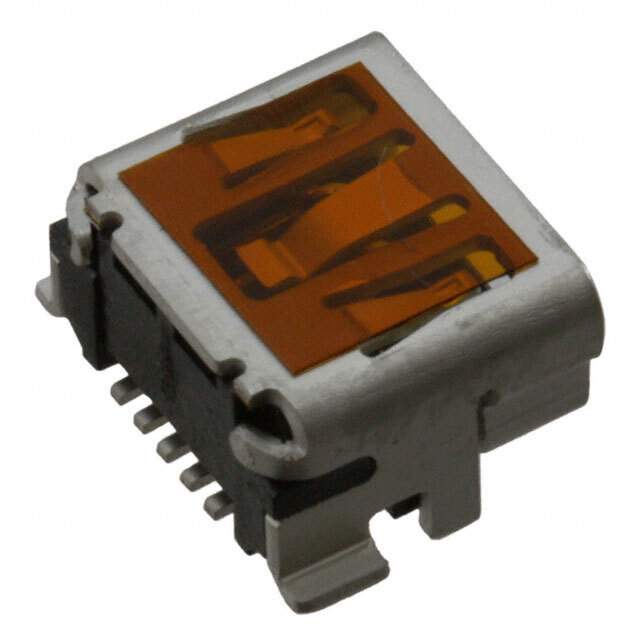

0513870530 Real Image
Same model may have multiple batches, images only for reference.

0513870530

Part No 0513870530
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Molex, LLC
Series 51387
Package Tape & Reel
Product Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0 OTG
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating 0°C ~ 50°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC/DC
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 051387
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853295-0513870530
Ultra Librarian 3D Model Ultra Librarian 0513870530 CAD Model

Description

The 853295-0513870530 is a USB mini B connector assembly from Molex, LLC.

  • Category: USB, DVI, HDMI connectors
  • Type: USB connections
  • Series: 51387
  • Features: Solder retention
  • Specification: USB 2.0 OTG
  • Shielded: Yes
  • Voltage Rating: 30VAC/DC
  • Current Rating: 1A
  • Package: Tape & reel
  • Standard Package: 1,200 pieces
  • Mounting: Surface mount or right angle through-hole
  • Temperature Range: 0°C to 50°C
  • Flammability Rating: UL94 V-0
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Status: Active product
