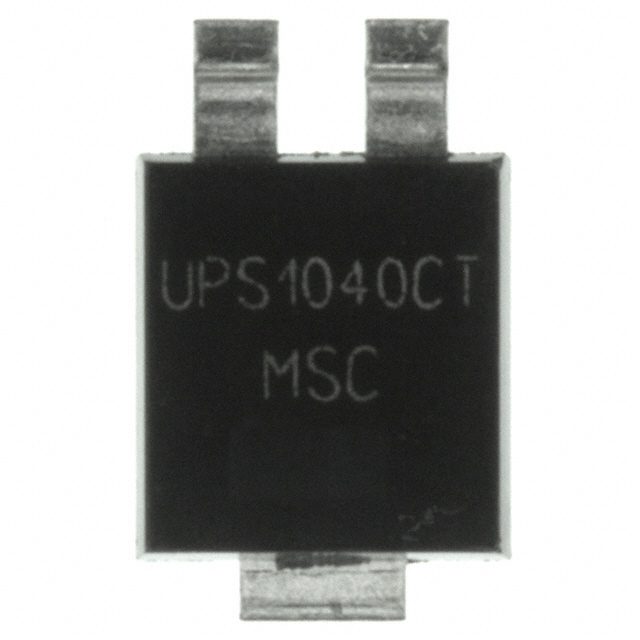

Same model may have multiple batches, images only for reference.
UPS1040 Microsemi Corporation
Same model may have multiple batches, images only for reference.

UPS1040

Part No UPS1040
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V 10A
Datasheet
UPS1040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 570mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 150μA @ 35V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package Powermite 3
Win Source Part Number 406666-UPS1040
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPS1040 CAD Model

Description

The Microsemi Corporation Schottky Diode is a high-performance electronic component that is designed to provide superior performance and reliability.

  • GPTDescription: This diode is made with high-quality materials and is designed to withstand harsh operating conditions.
  • GPTDescription: The diode has a maximum reverse voltage of 40V and a forward voltage of 570mV @ 10A.
  • GPTDescription: The operating temperature of the diode ranges from -55°C to 125°C.
  • GPTDescription: The diode configuration is 1 Pair Common Cathode and the average rectified current is 10A.
  • GPTDescription: The diode is packaged in a Powermite 3 case and has a fast recovery speed of 200mA (Io).
  • GPTDescription: This product is categorized under Discrete Semiconductor Products and is now obsolete (EOL).
