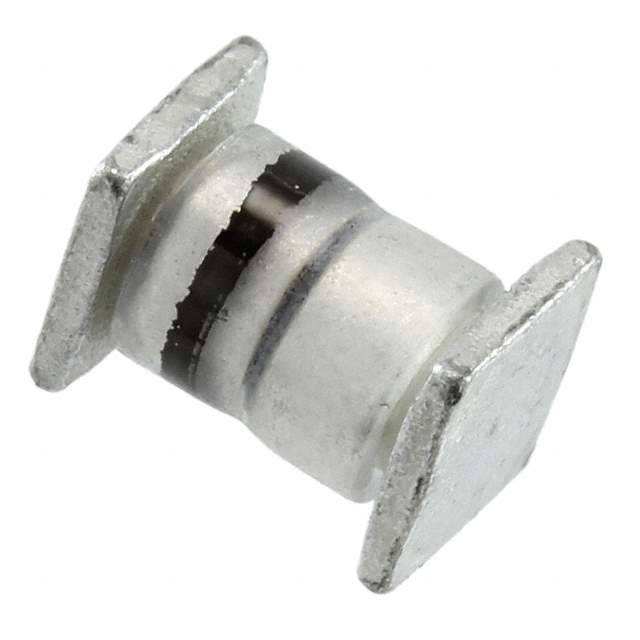

1N4969US Real Image
Same model may have multiple batches, images only for reference.

1N4969US

Part No 1N4969US
Manufacturer Microsemi Corporation
Catalog Diodes - Zener - Single
Description 5 WATT GLASS ZENER DIODES | DIODE ZENER 30V 5W D5B
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Voltage - Zener (Nom) (Vz) 30V
Tolerance ±5%
Maximum Power 5W
Impedance (Maximum) (Zzt) 8 Ohms
Current - Reverse Leakage at Vr 2μA at 22.8V
Voltage - Forward (Vf) (Maximum) at If 1.5V at 1A
Temperature Range - Operating -65°C ~ 175°C
Mounting Style SMD
Manufacturer Package E-MELF
Supplier Device Package D-5B
Family Part Number 1N4969
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1121848-1N4969US
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1N4969US CAD Model

Description

The Microsemi Corporation 1N4969US is a D-5B surface mount device (SMD) zener diode.

  • Package: D-5B SMD
  • Tolerance: ±5%
  • Nominal Voltage: 30V
  • Maximum Power: 5W
  • Forward Voltage: 1.5V @ 1A
  • Reverse Leakage Current: 2µA @ 22.8V
  • Manufacturer Homepage: www.microsemi.com
  • Win Source Part Number: 1121848-1N4969US
  • Supply and Demand Status: Limited
