Same model may have multiple batches, images only for reference.

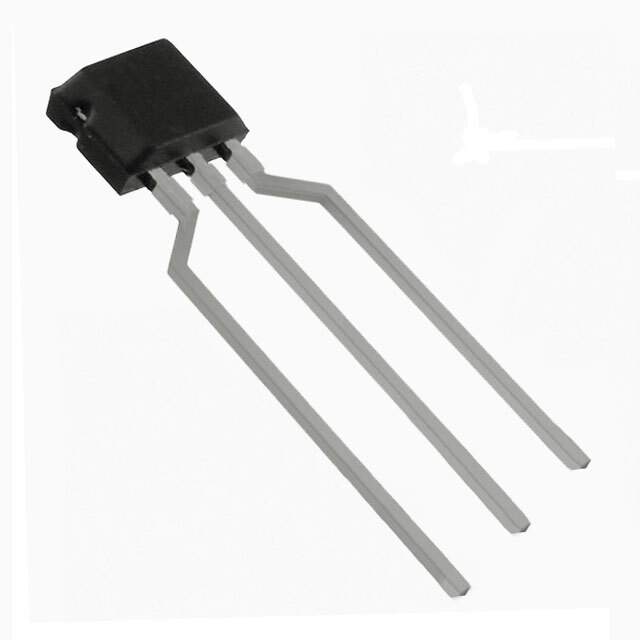

HAL506UA-A Real Image
Same model may have multiple batches, images only for reference.

HAL506UA-A

Part No HAL506UA-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOL TO92UA-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Features Digital Switch Unipolar Switch Open Drain Hall Effect TO-92UA-2
Manufacturer Micronas GmbH
Series HAL® 5xy
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Operating Temperature Range -40°C ~ 170°C (TJ)
Mounting Through Hole
Package TO-226-3, TO-92-3 Short Body
Case / Package TO-92UA-2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 79750603, HAL506UA-ACT, HAL506UA-ATB, HAL 506UA-A-2-A-2-00-HASE-020H, HAL506UA-A-ND, Q913366
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919994-HAL506UA-A
Ultra Librarian 3D Model Ultra Librarian HAL506UA-A CAD Model

Description

The HAL® 5xy series from Micronas GmbH is a digital switch unipolar switch open drain Hall Effect TO-92UA-2 that operates in a temperature range of -40°C to 170°C (TJ).

  • Package Includes: Cut Tape (CT), Tape & Box (TB), TO-226-3, and TO-92-3 Short Body
  • Product Status: obsolete
  • Classification: sensor
  • Supply and Demand Status: balanced
  • Units Per Package: 2000
  • MSL Level: 1 (unlimited)
  • HTSUS: 8542.39.0001
  • Other Part Numbers: 79750603, HAL506UA-ACT, HAL506UA-ATB, HAL 506UA-A-2-A-2-00-HASE-020H, HAL506UA-A-ND, and Q913366
