Same model may have multiple batches, images only for reference.

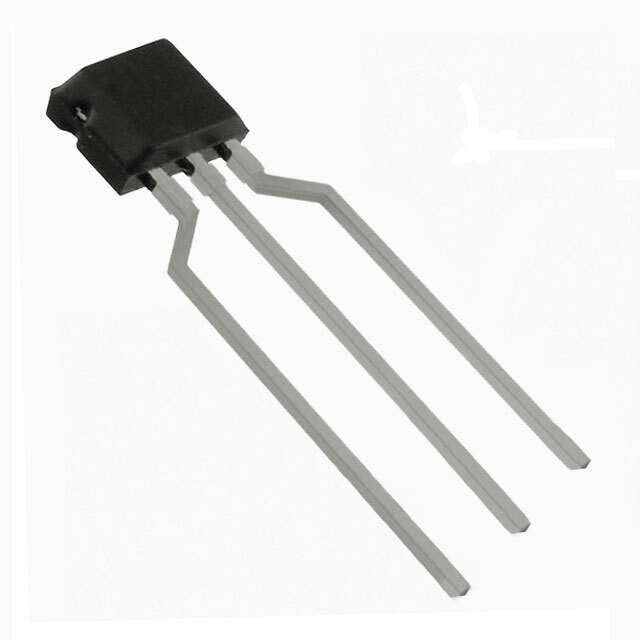

HAL505 UA-K Real Image
Same model may have multiple batches, images only for reference.

HAL505 UA-K

Part No HAL505 UA-K
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH TO92UA-1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Features Digital Switch Open Drain Hall Effect TO-92UA-1
Manufacturer Micronas GmbH
Series HAL® 5xy
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 140°C (TJ)
Mounting Through Hole
Package TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Case / Package TO-92UA-1
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number HAL505 UA-K-ND, HAL505UA-K
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873209-HAL505 UA-K
Ultra Librarian 3D Model Ultra Librarian HAL505 UA-K CAD Model

Description

The Micronas GmbH HAL505 UA-K is a high-performance digital switch designed for use in various sensing applications.

  • Features: Hall effect sensor, a digital signal processor, and an open drain output.
  • Applications: Current sensing, position sensing, and speed sensing.
  • Series: HAL® 5xy series
  • Manufacturer: Micronas GmbH
