The MT48H8M32LFB5-75:G is a 256Mb DDR2 SDRAM (Double Data Rate Two Synchronous Dynamic Random-Access Memory) device manufactured by Micron Technology Inc. It is organized as 8Meg x 32, making it well-suited for applications that benefit from a wider data bus and moderate memory capacity. The ':G' likely denotes a specific revision or speed grade.

Applications

• Embedded Systems
• Networking equipment
• Graphics Cards (low-end)
• Set-top boxes
• Industrial control systems

Features

• 256Mb (8Meg x 32) memory configuration
• DDR2 architecture: Provides increased bandwidth compared to DDR SDRAM
• Clock rate: Up to 133 MHz (7.5ns cycle time), based on the '-75' designation.
• Double data rate operation: Transfers data on both the rising and falling edges of the clock.
• Four internal banks for concurrent operation
• Programmable burst length: 2, 4, 8
• Programmable CAS latency: 3, 4, 5
• On-die termination (ODT): Improves signal integrity for high-speed operation.
• Differential clock inputs (CK and CK#)
• Lead-free construction, RoHS compliant

Benefits

• Higher bandwidth: DDR2 technology enables faster data transfer rates, enhancing system performance.
• Wider data bus: The 32-bit data bus improves data throughput in certain applications.
• Moderate memory capacity: Offers sufficient memory for a variety of embedded and consumer applications.
• Improved signal integrity: On-die termination minimizes signal reflections and noise, ensuring reliable operation.
• Lower power consumption: DDR2 operates at a lower voltage than DDR, reducing power consumption.

Additional Details

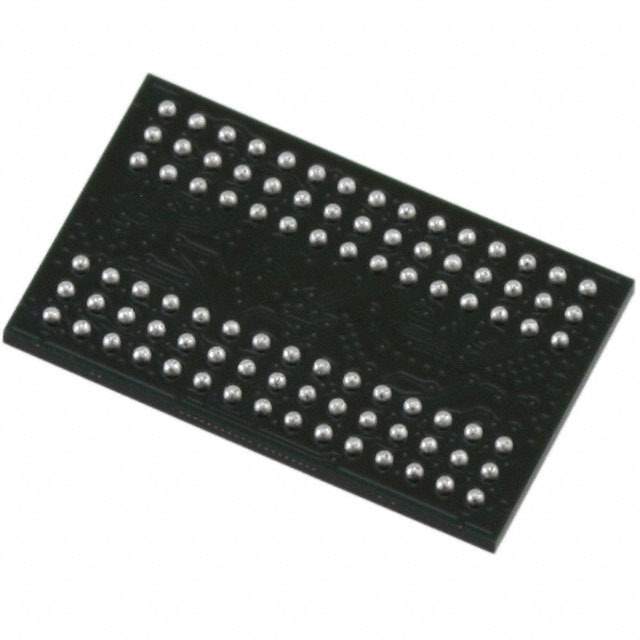

The MT48H8M32LFB5-75:G typically operates at 1.8V. It is packaged in a FBGA (Fine-pitch Ball Grid Array) for efficient surface mounting and heat dissipation. Its DDR2 architecture offers a good balance between performance and power efficiency. The 32-bit data bus makes it suitable for applications where data is processed in larger chunks.
