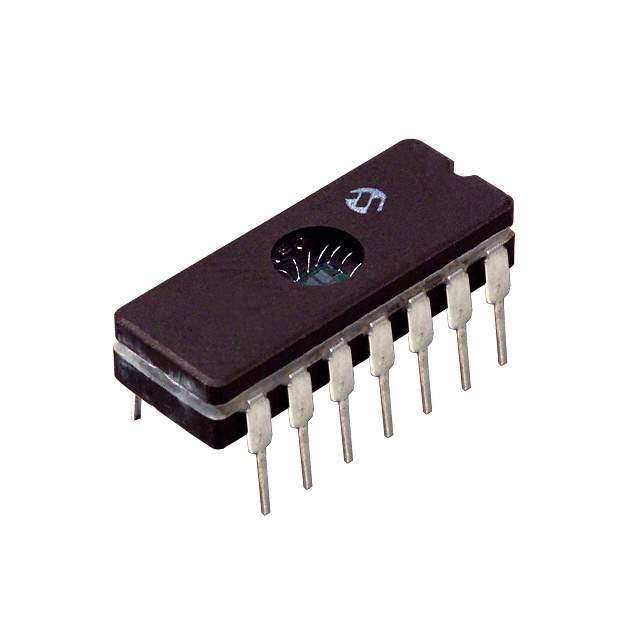

The TC4468EJD is a versatile and powerful device from Microchip Technology, renowned for its exceptional performance in driving both inductive and capacitive loads. This device is part of Microchip's TC446X family of MOSFET drivers, which are known for their reliability and efficiency in various applications.

Key Features

• High Peak Output Current: The TC4468EJD can deliver a peak output current of up to 1.5A, making it suitable for driving large capacitive loads with speed and precision.
• Wide Operating Voltage Range: It operates over a broad voltage range from 4.5V to 18V, providing flexibility in accommodating different system voltages.
• Low Shoot-Through Current: This device has matched rise and fall times, which helps in minimizing the shoot-through current, thus enhancing the overall system efficiency and reliability.
• Input Logic Flexibility: The TC4468EJD is compatible with standard CMOS or LSTTL outputs, with input thresholds that are user-adjustable for various logic levels.
• Protection Features: It includes built-in latch-up protection and is designed to withstand high-energy noise transients on the supply line, ensuring the device's robustness in harsh environments.

Applications

The TC4468EJD is an ideal choice for a wide range of applications. Its ability to efficiently drive MOSFETs makes it well-suited for use in:

• Power Supplies
• DC to DC Converters
• Motor Controllers
• Line Drivers
• Pulse Generators

Quality and Reliability

Microchip Technology is committed to providing high-quality products. The TC4468EJD is no exception, with its robust design and thorough testing ensuring long-term reliability for critical applications. Whether for industrial, automotive, or consumer electronics, the TC4468EJD is designed to meet the stringent requirements of a wide array of environments and conditions.

For detailed specifications, application notes, and additional resources, designers and engineers are encouraged to visit the official Microchip Technology website or contact their local Microchip sales representative.
