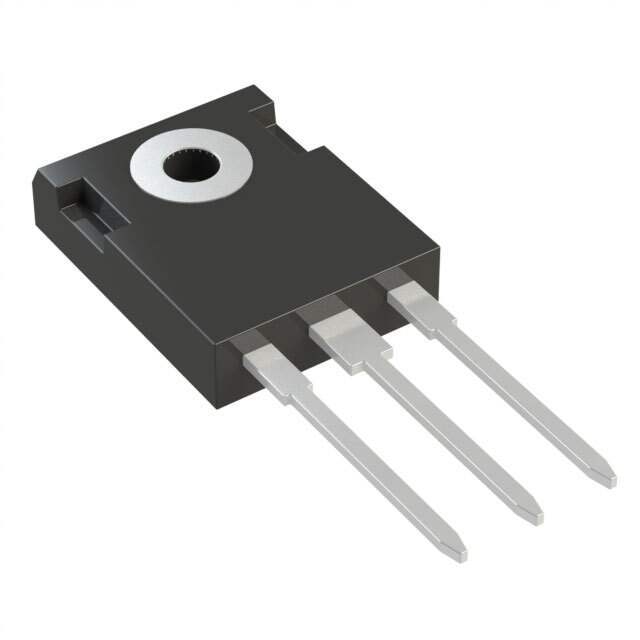

Microchip Technology MSC050SDA120B Silicon Carbide Power Module

The MSC050SDA120B is a state-of-the-art silicon carbide (SiC) power module from Microchip Technology, designed to deliver high efficiency, reliability, and performance for a wide range of power applications. This advanced power module is a testament to Microchip's commitment to providing innovative solutions that meet the evolving needs of the electronics industry.

Key Features and Benefits

• High-Efficiency SiC MOSFETs: The module incorporates silicon carbide MOSFETs, which offer superior switching performance and higher efficiency compared to traditional silicon devices. This leads to reduced energy losses and improved thermal management.
• 1200V Blocking Voltage: With a blocking voltage of 1200V, the MSC050SDA120B is capable of handling high voltage applications, making it suitable for electric vehicles, renewable energy systems, and industrial power supplies.
• 50A Output Current: The module is rated for a continuous output current of 50A, ensuring that it can support demanding power requirements without compromising performance.
• Low Inductance Design: The low inductance design minimizes switching losses and enhances overall system efficiency, which is critical for high-frequency operation.
• Robust Package: Housed in a rugged package, the MSC050SDA120B is built to withstand harsh environmental conditions, ensuring long-term reliability and durability.
• Easy Integration: The power module is designed with user-friendly features for easy integration into various circuit designs, reducing development time and simplifying the assembly process.
• Thermal Management: Advanced thermal management capabilities enable the module to operate at higher temperatures, reducing the need for additional cooling systems and saving space and cost.

Applications

The MSC050SDA120B is versatile and can be used in a variety of applications, including but not limited to:

• Electric and hybrid electric vehicles (EV/HEV)
• Photovoltaic (PV) inverters and energy storage systems
• Uninterruptible power supplies (UPS)
• Industrial motor drives and welding equipment
• High voltage DC/DC converters

In conclusion, Microchip Technology's MSC050SDA120B silicon carbide power module offers a blend of performance, efficiency, and ease of use that is well-suited for today's high-performance power conversion systems. Its robust design and advanced features make it a compelling choice for engineers looking to optimize their power systems.
