Microchip Technology's MIC2514BM5: A High-Performance Single-Channel Power Switch

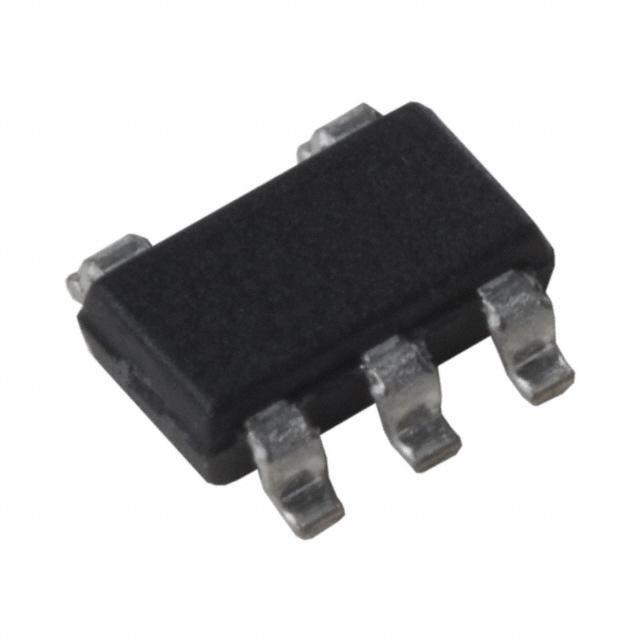

The MIC2514BM5 from Microchip Technology is a compact, high-efficiency single-channel power switch designed for USB and other hot-swap applications. This versatile component is housed in a small 5-pin SOT-23 package, making it an ideal choice for space-constrained designs.

With its integrated current-limiting and thermal protection features, the MIC2514BM5 ensures safe operation for both the device and the USB port by preventing damage due to over-current conditions. It is capable of delivering up to 500mA of continuous current, which complies with the USB 2.0 standard, making it suitable for a wide range of USB-powered devices.

Key Features:

• Integrated Fault Protection: The MIC2514BM5 includes built-in over-current and thermal shutdown features to protect the circuit during fault conditions.
• High Output Current: This power switch can deliver up to 500mA, which is sufficient for most USB peripherals and ensures compatibility with USB 2.0 power specifications.
• Low Quiescent Current: The device is designed for power-sensitive applications, with a low quiescent current that minimizes power consumption when in standby mode.
• Controlled Rise Time: The component offers a controlled output rise time, which reduces inrush current and the associated voltage drop on power lines, thus improving system reliability.
• Fast Transient Response: Quick response to load changes is a hallmark of the MIC2514BM5, ensuring stable operation for dynamic power requirements.

Applications:

The versatility of the MIC2514BM5 makes it suitable for a variety of applications, including:

• USB Hubs and Peripherals
• Hot-Swap Power Supplies
• Battery-Charger Circuits
• Portable Consumer Electronics

Microchip Technology's commitment to quality and performance is evident in the MIC2514BM5, which is designed to meet the rigorous demands of modern electronic devices. Whether you're designing a new USB hub or upgrading an existing power management system, the MIC2514BM5 offers the reliability and functionality needed for smooth and safe operation.

For detailed technical specifications and application guidelines, designers are encouraged to consult the comprehensive datasheet provided by Microchip Technology.
