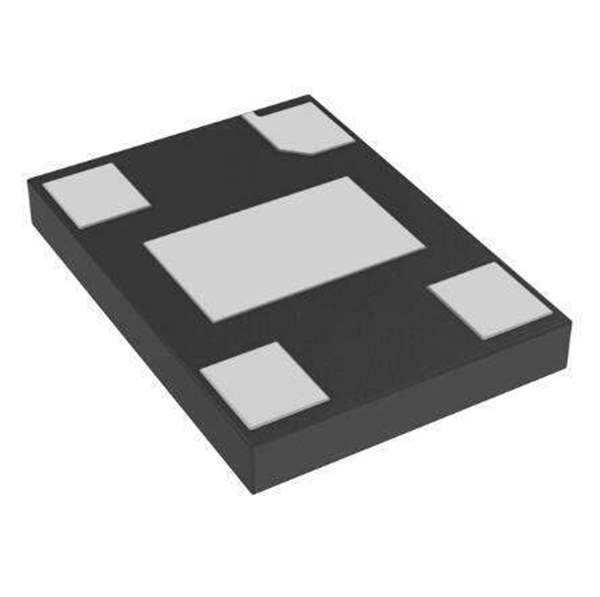

DSC1001AL5-040.0000Microchip Technology
Same model may have multiple batches, images only for reference.

DSC1001AL5-040.0000

Part No DSC1001AL5-040.0000
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC XO 40.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Oscillators
Packaging Tube
Part Status Active
Frequency 40 MHz
Function Standby (Power Down)
Output CMOS
Frequency Stability ±10ppm
Operating Temperature -40°C ~ 105°C
Ratings AEC-Q100
Mounting Type Surface Mount
Win Source Part Number WS1211211-DSC1001AL5-040.0000
Ultra Librarian 3D Model Ultra Librarian DSC1001AL5-040.0000 CAD Model

Description

40 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN Exposed Pad
